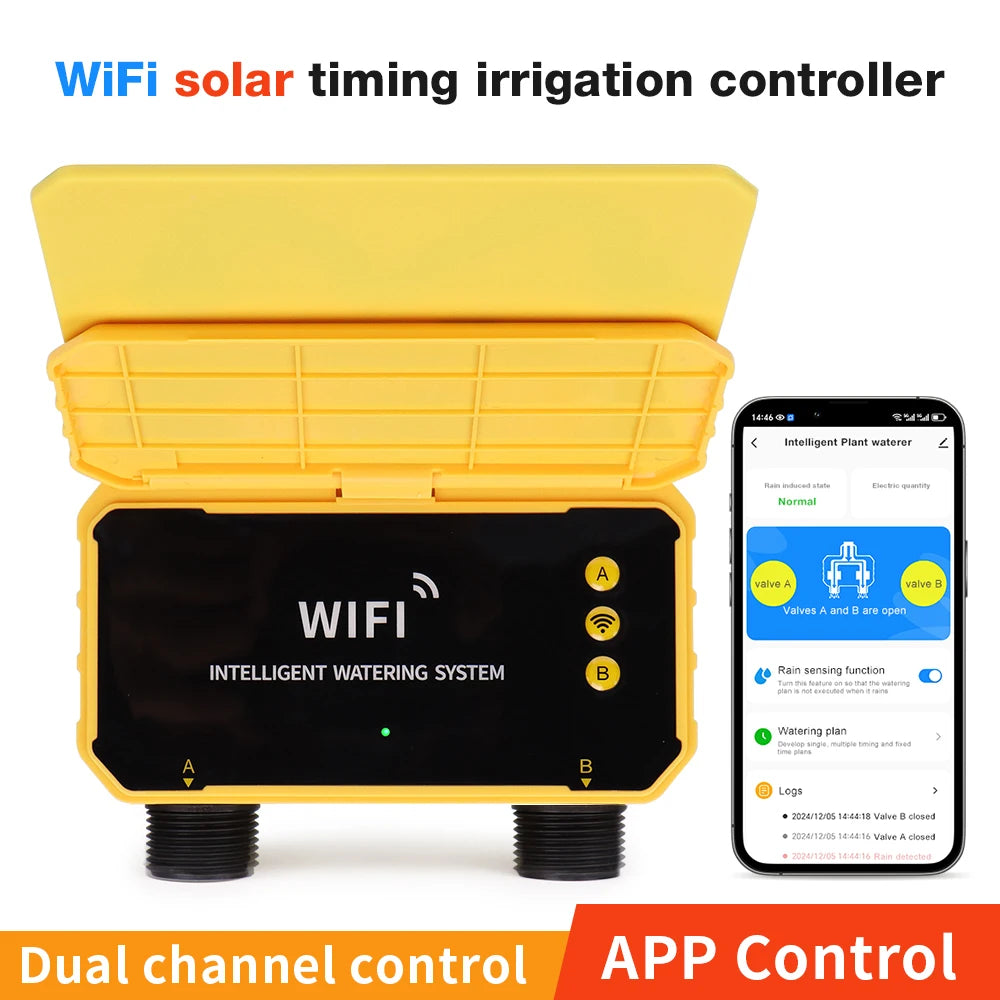

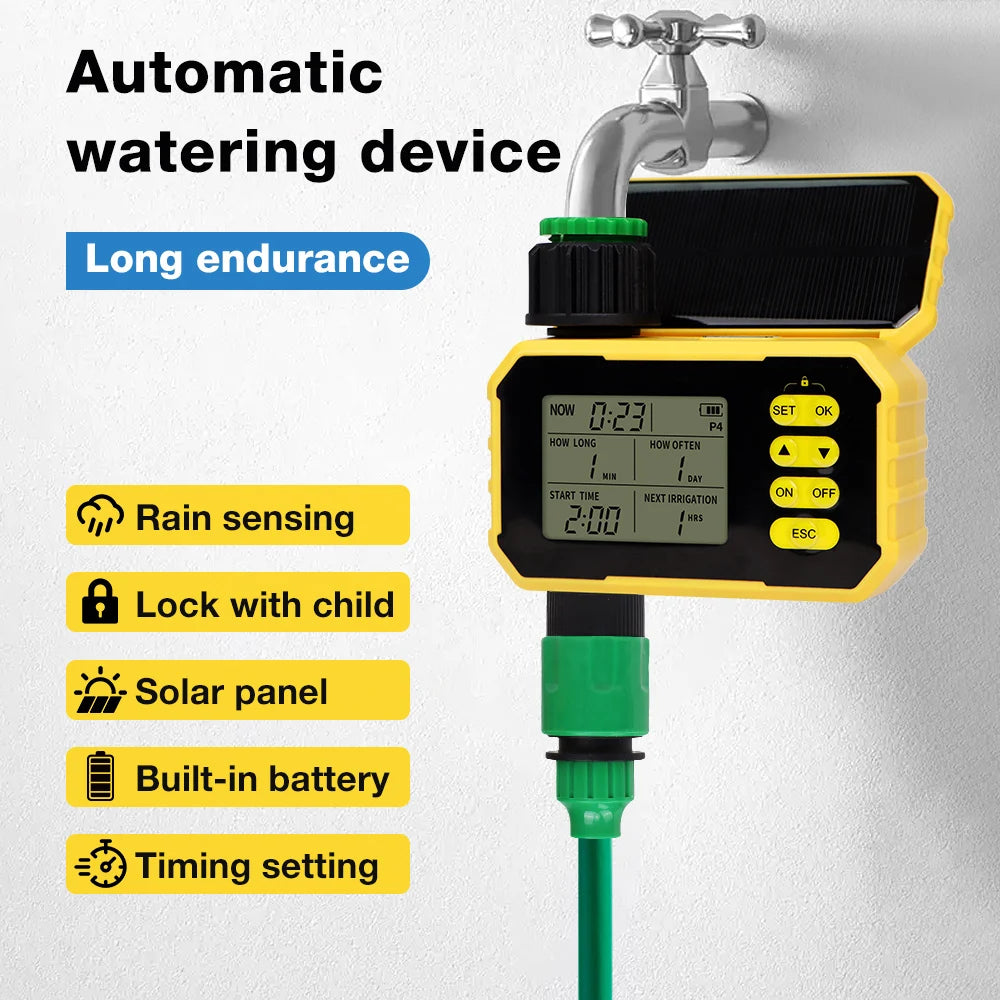

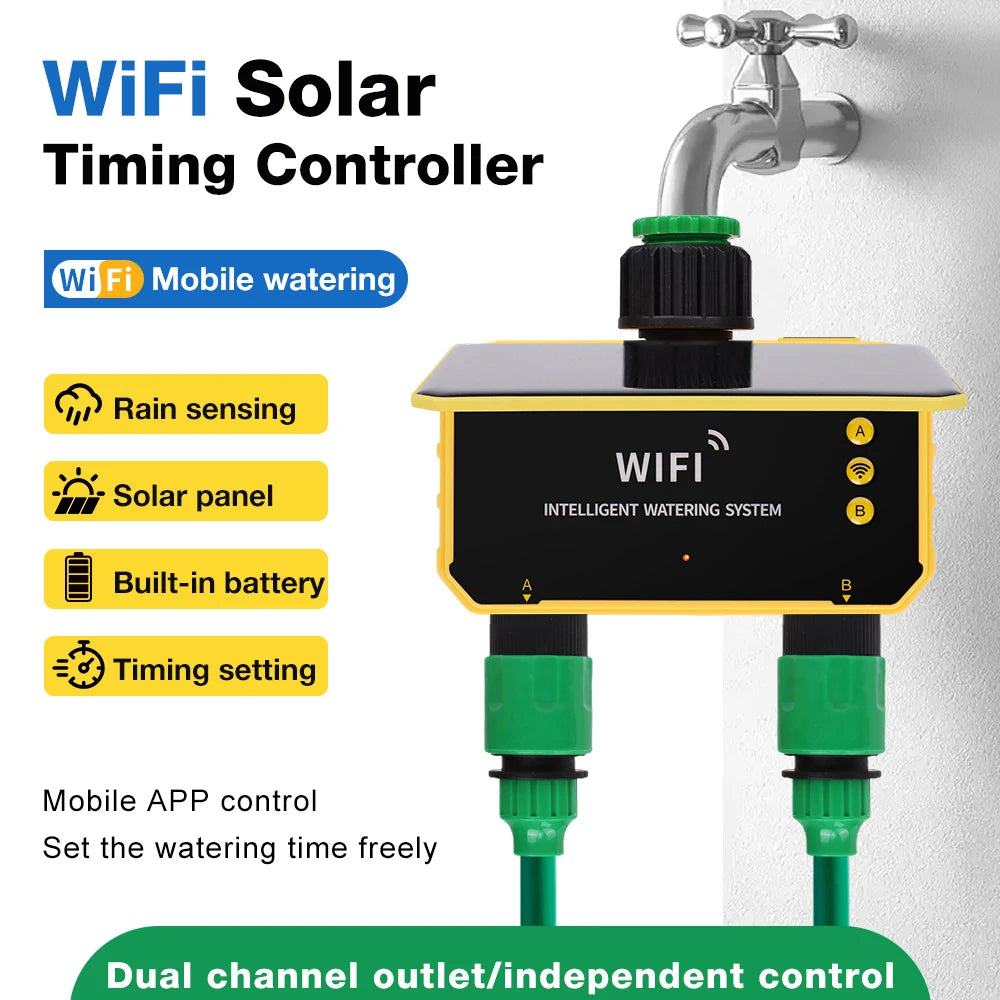

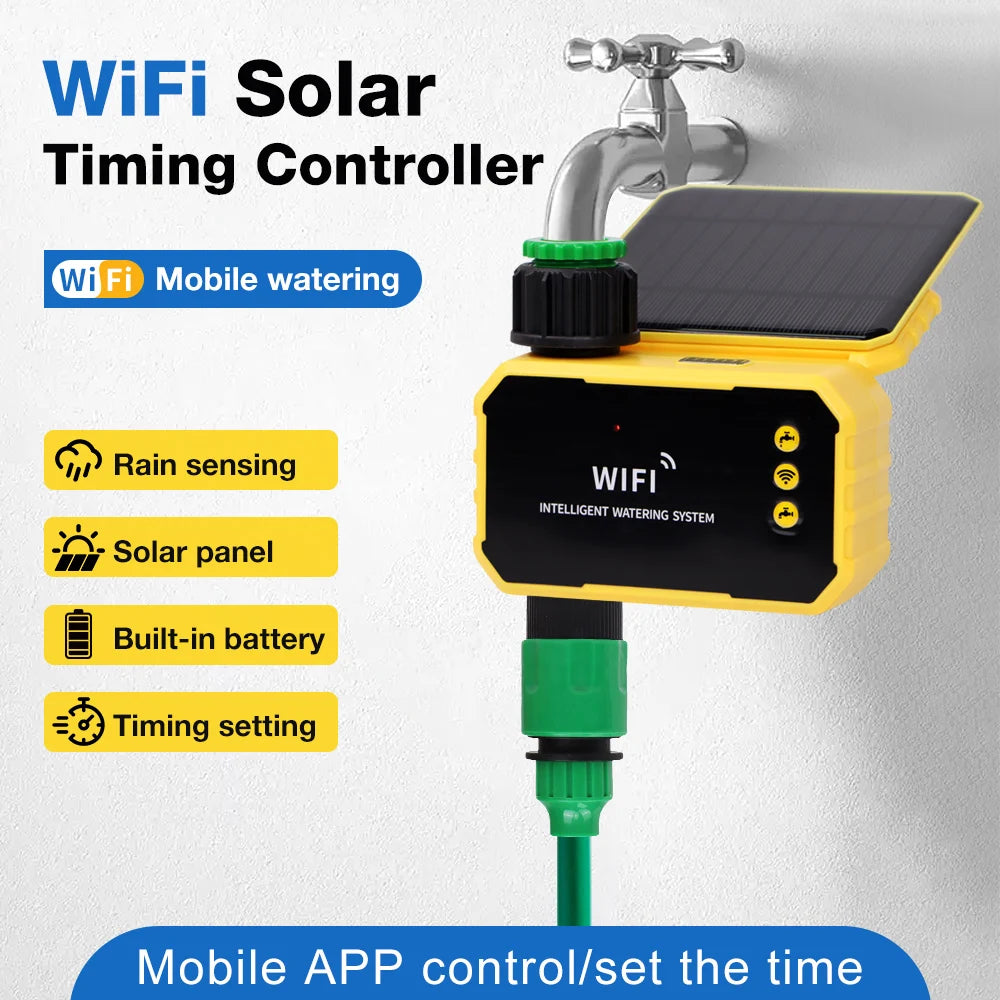

WiFi Solar Irrigation Timing Controller, Smart Automatic Irrigation System for Garden Tap Valve Controller with Rain Sensor

This product is a smart WIFI water valve controller that uses photovoltaic charging. For optimal operation, please place it in a location with direct sunlight for extended periods. If used indoors, a USB charging cable is required to prevent insufficient power. This product is suitable for villa courtyards, balcony gardens, rooftop gardens, family green walls, micro three-dimensional green jets, site engineering dust control, vegetable garden drip irrigation, and sprinkler irrigation. This product meets waterproofing level 5, meaning it can withstand rain but should not be submerged in water. The casing is made of UV-resistant material, allowing for sun exposure.

Features:

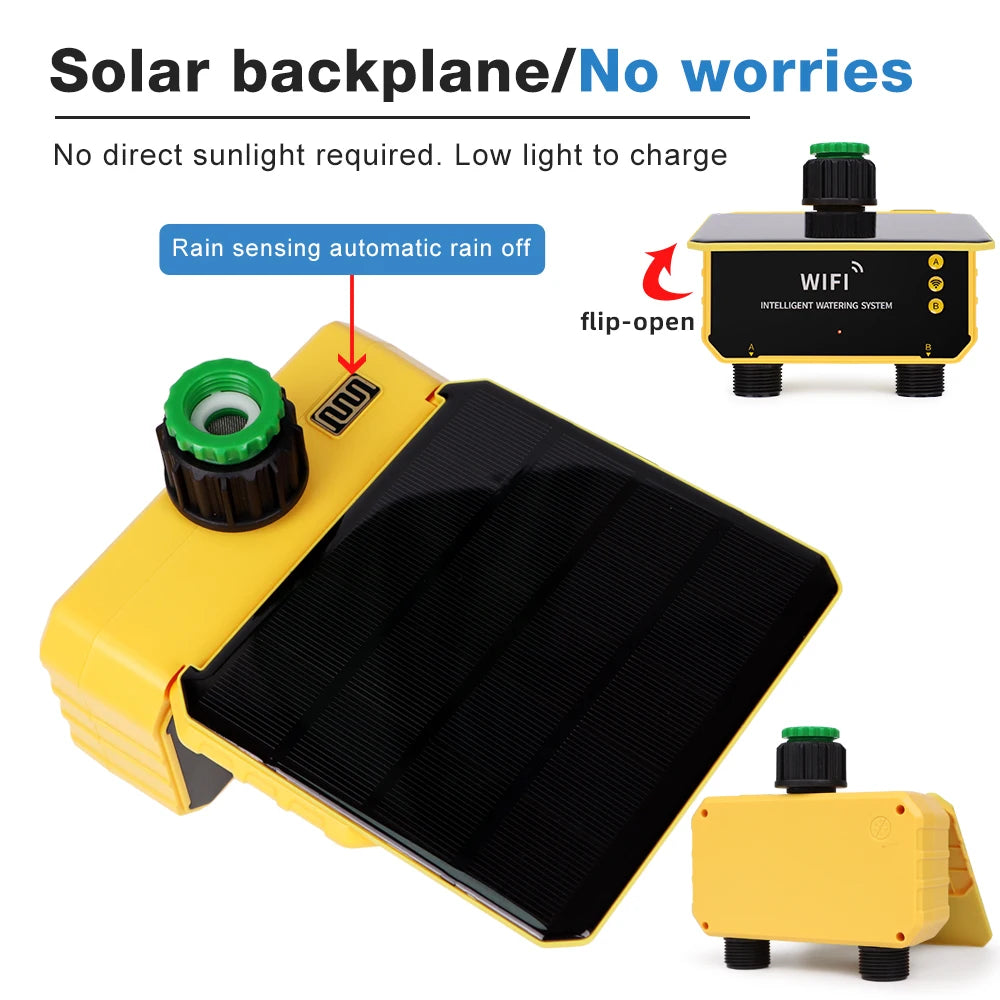

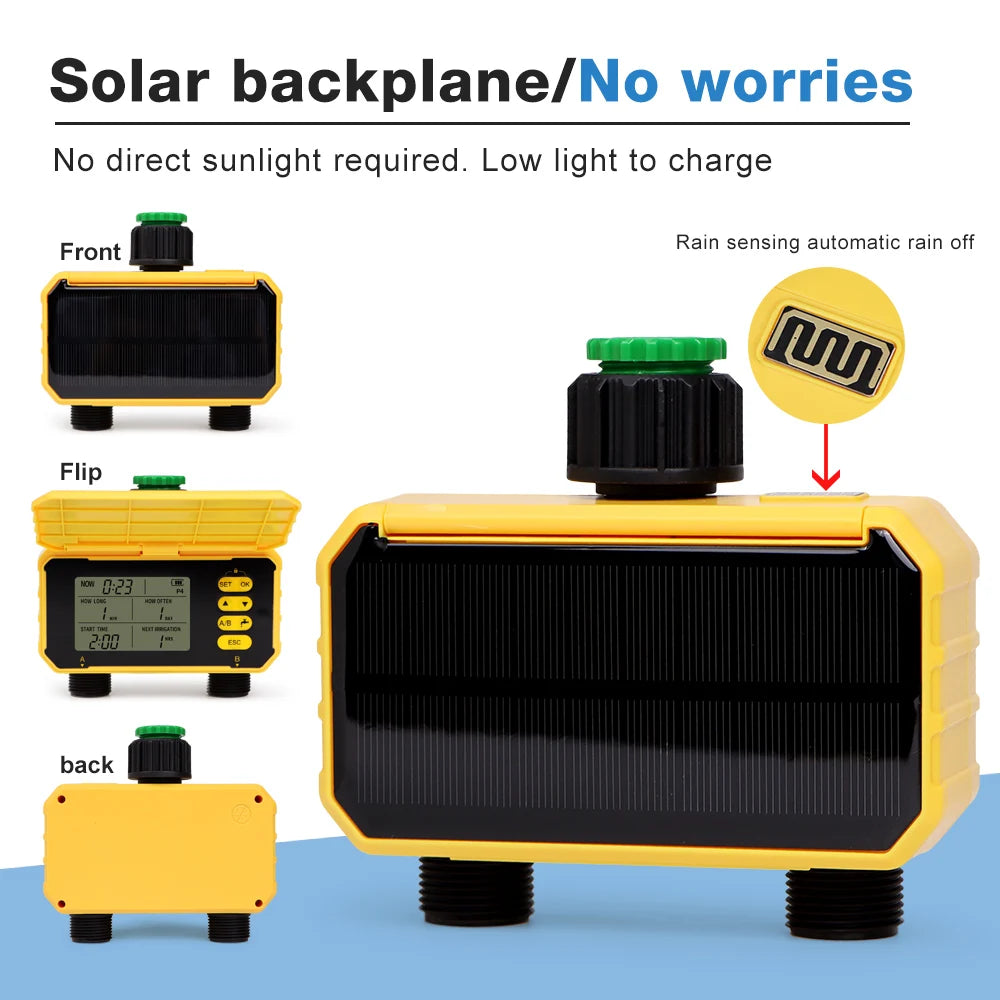

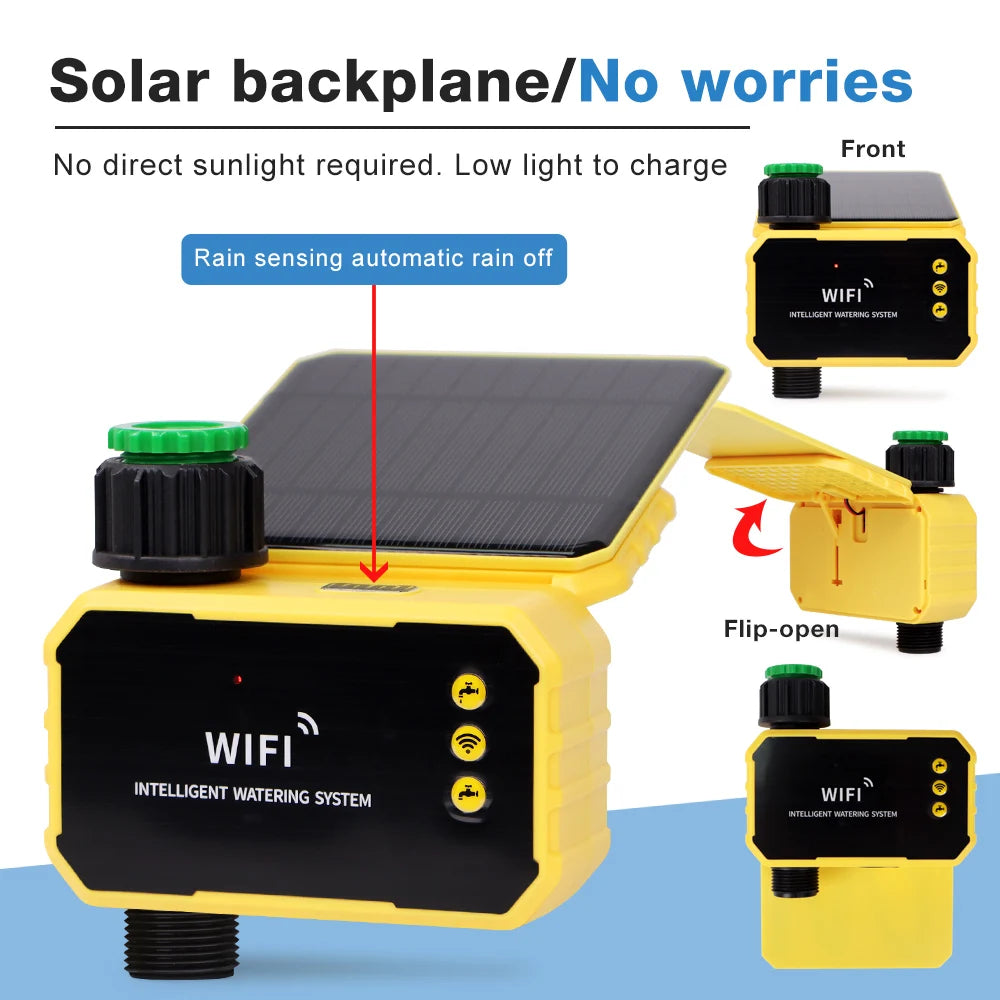

1. Solar powered: Equipped with high-performance solar panels, it doesn't need direct sunlight and can charge the built-in battery on cloudy and low-light days, eliminating power worries and making it perfectly capable of handling daily irrigation tasks. It also features a Type-C charging port on the bottom.

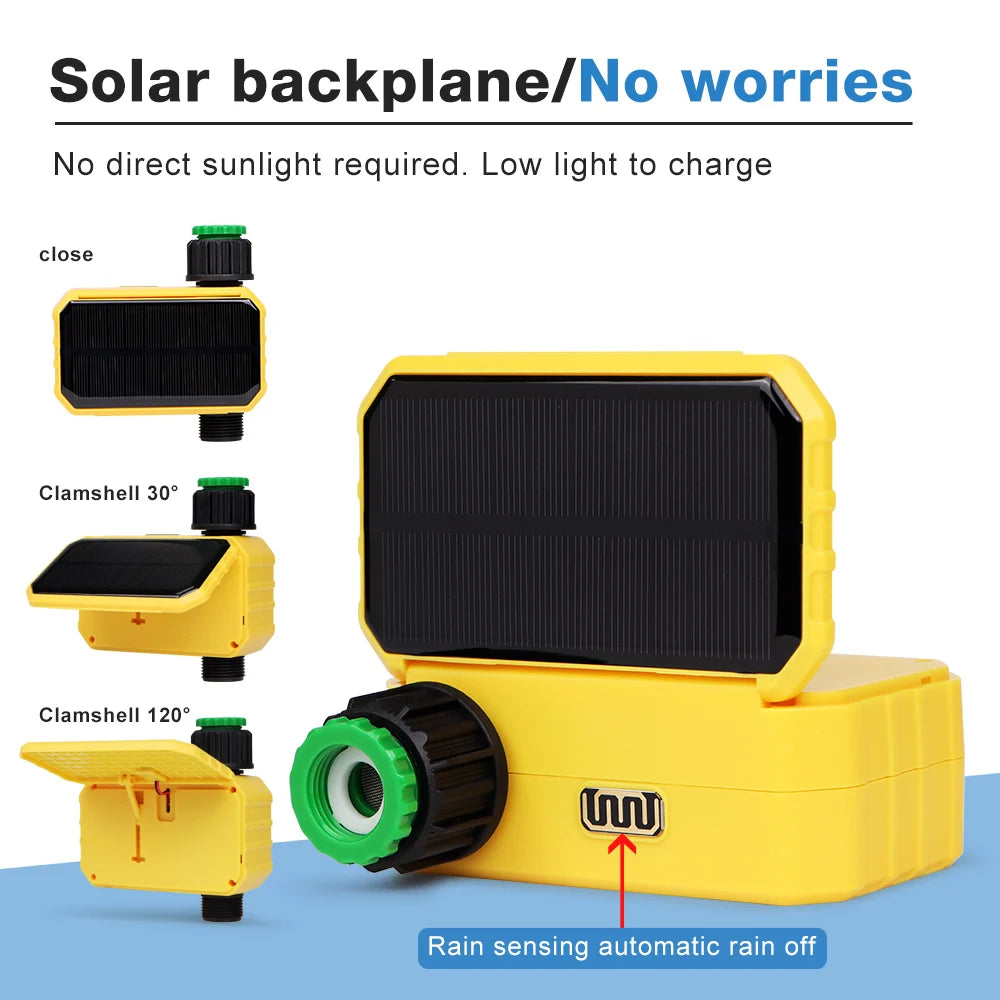

2. Rainfall detection: When rainfall is detected, the irrigation system automatically stops watering, saving electricity and reducing water waste, and is more energy-efficient and environmentally friendly.

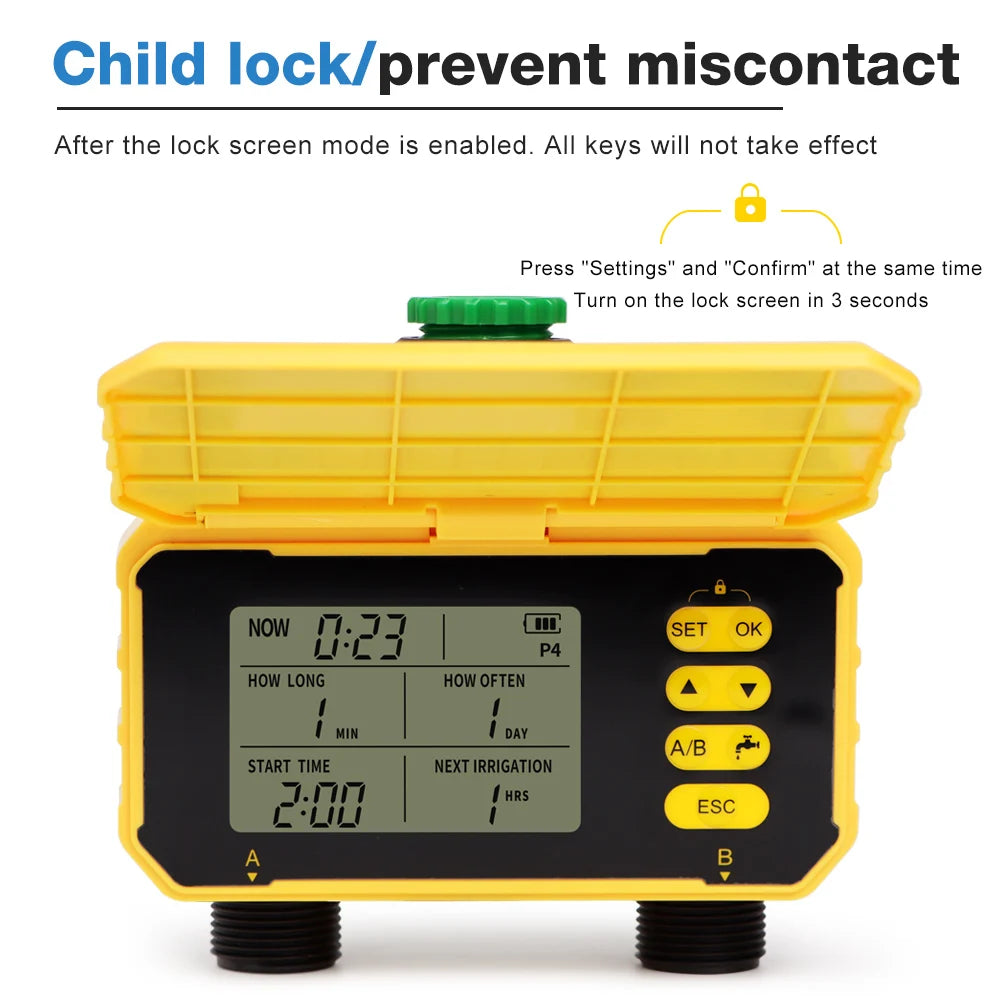

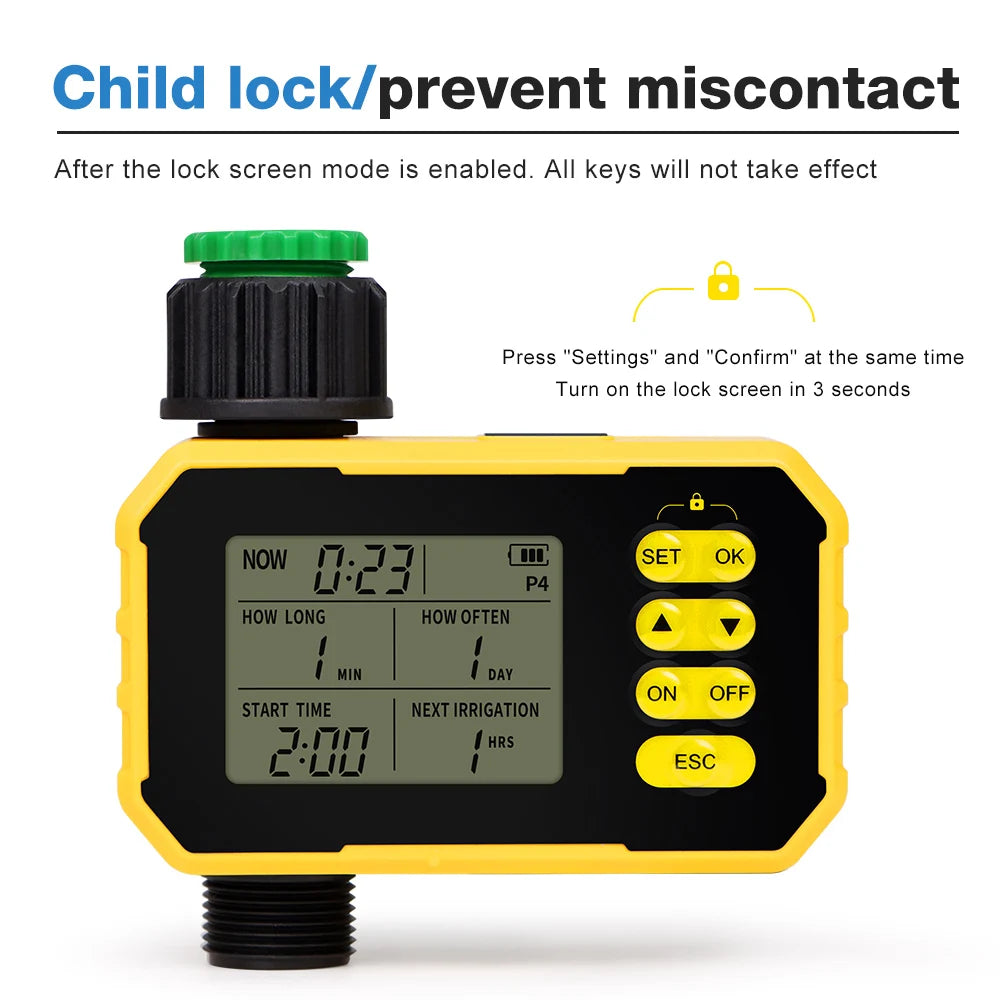

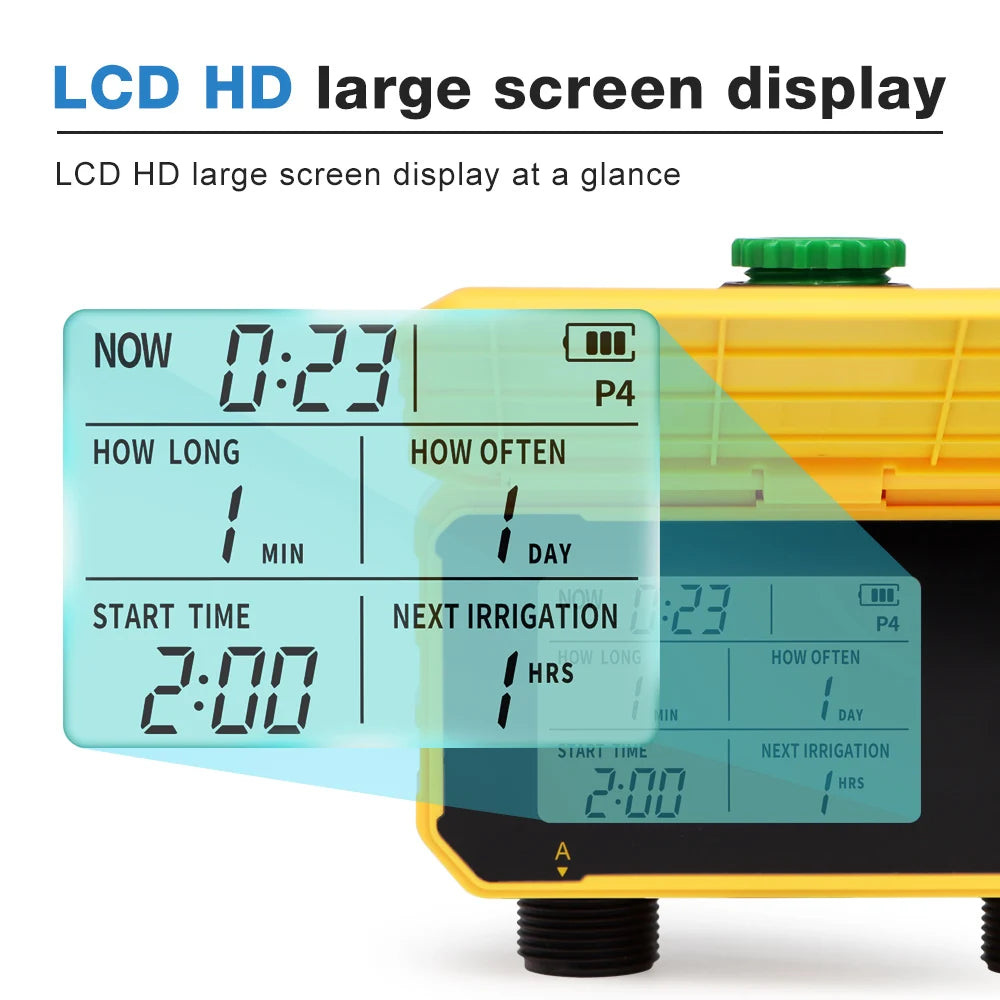

3. Screen lock function: You can lock the screen to prevent accidental contact with children or pets once the setting is complete.
4. Task setting: 4 different irrigation tasks can be set to meet different irrigation needs.

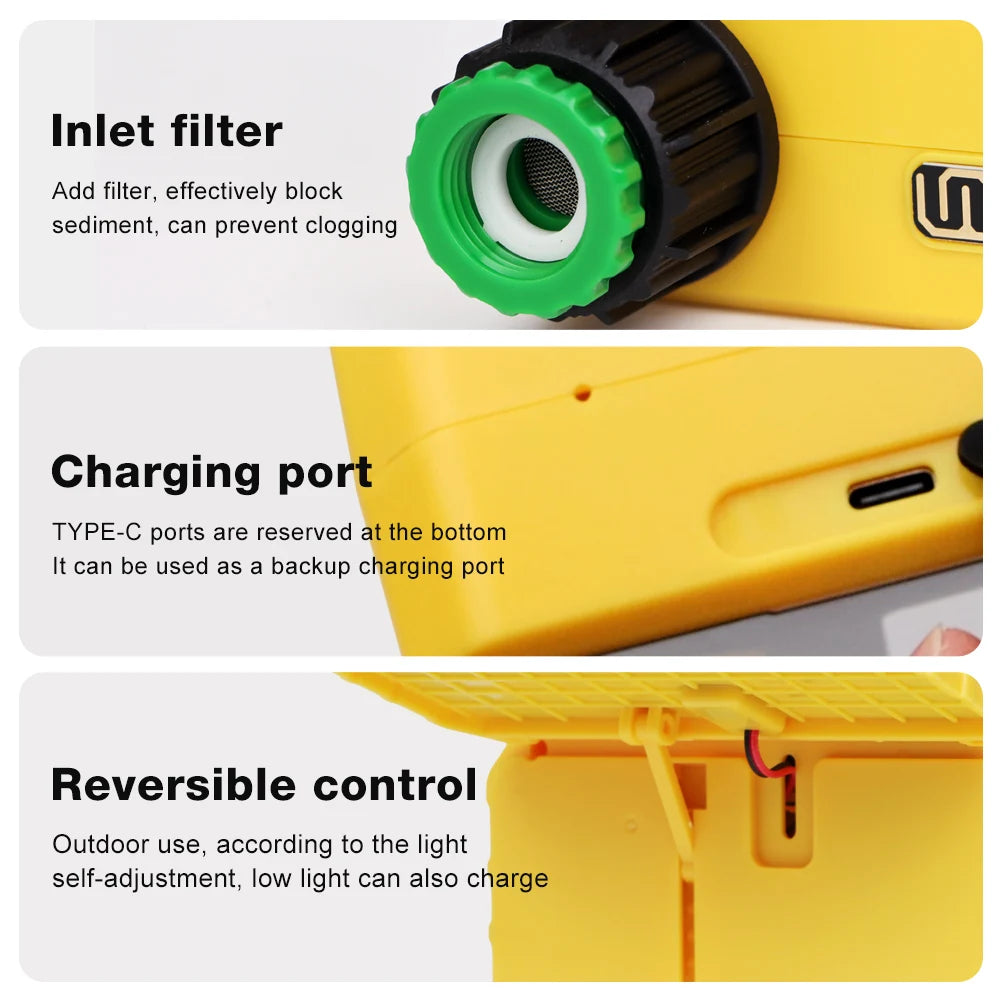

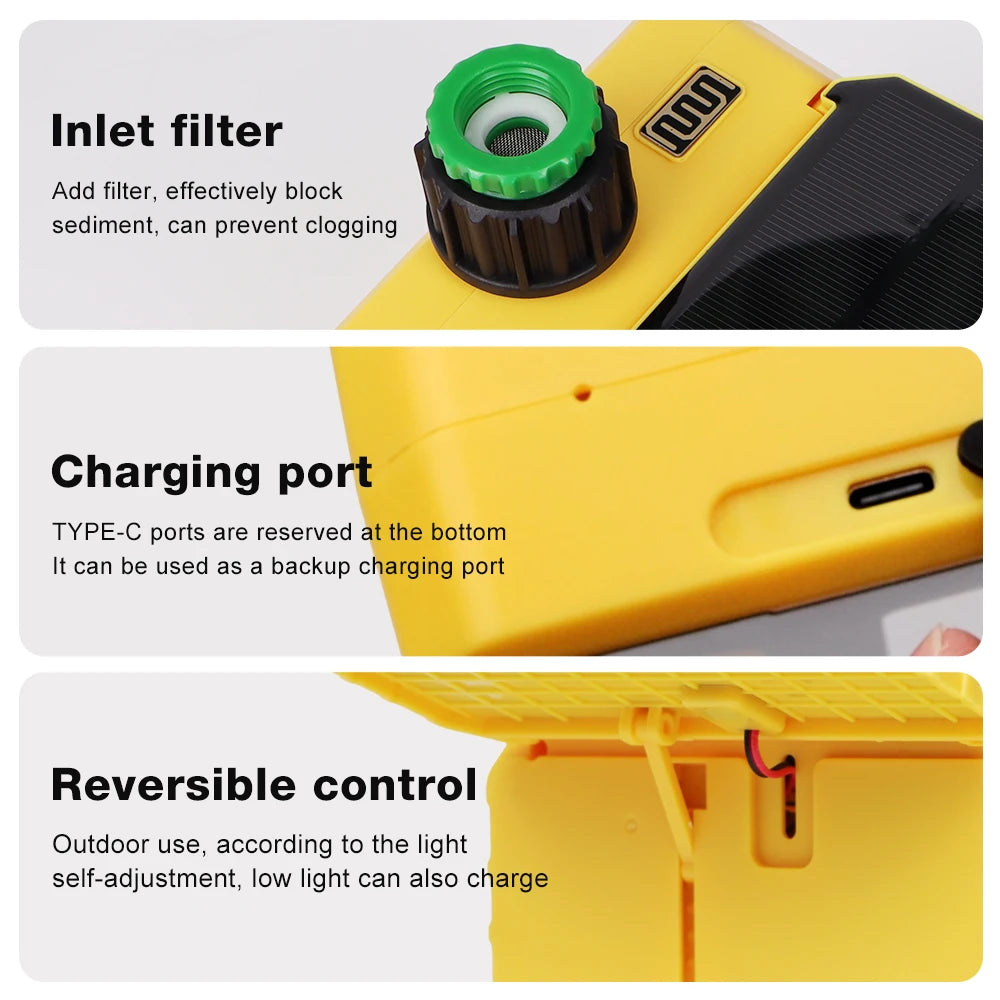

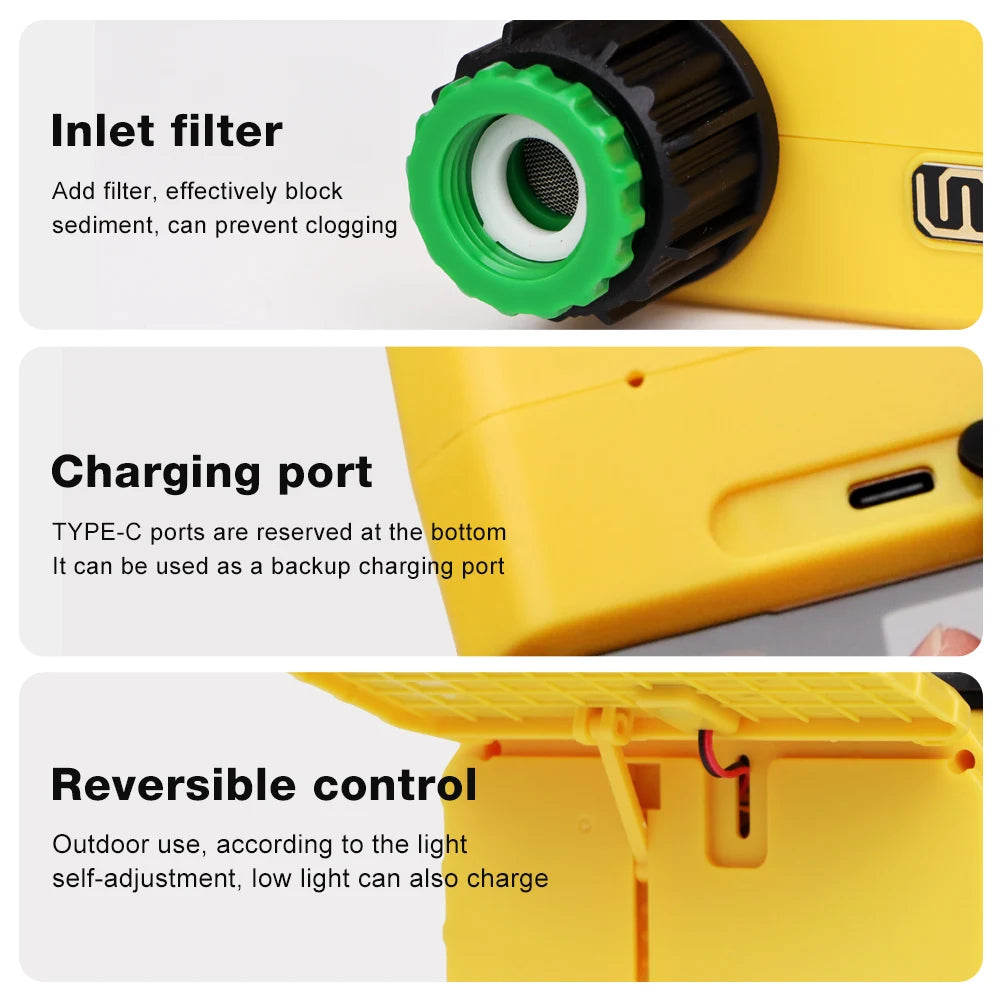

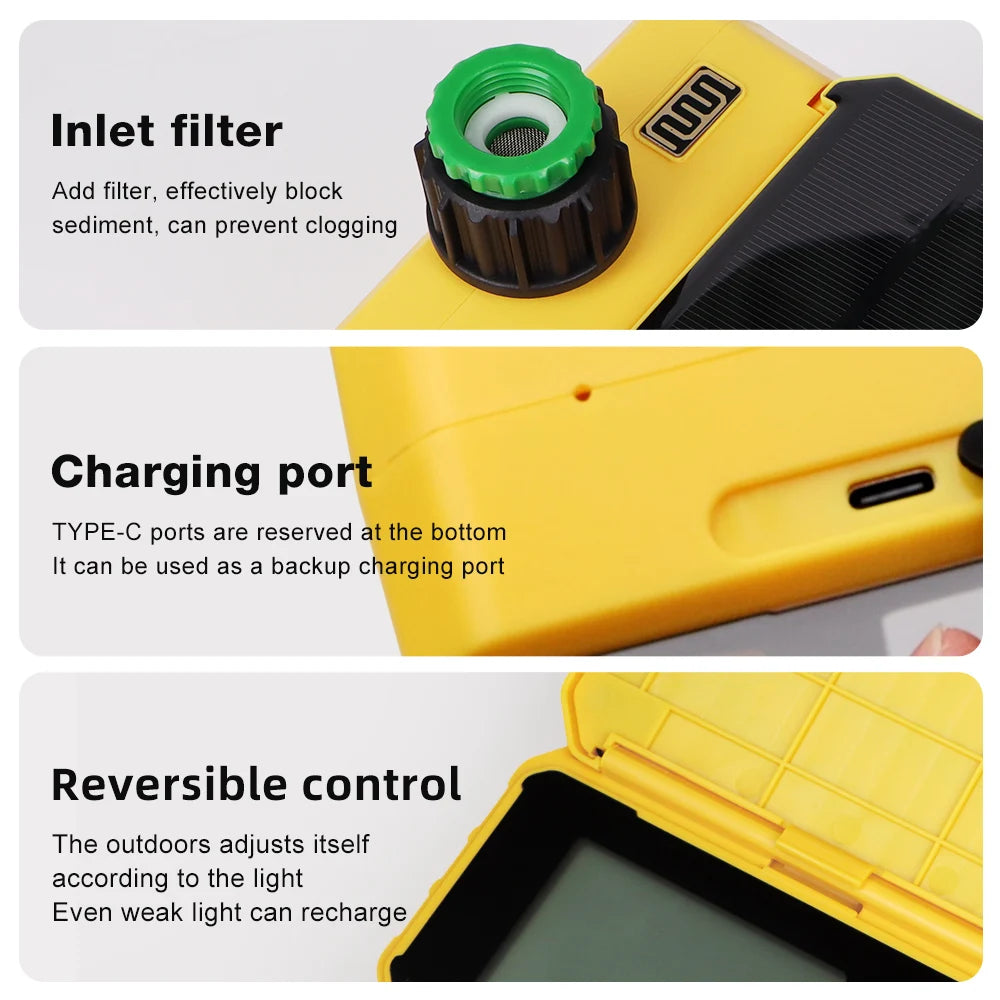

5. Easy to install: The product comes with a screen that effectively blocks sand and stones to prevent clogging. It also comes with an adapter for easy installation.
6. Versatile: Suitable for all kinds of balconies, garden paths and outdoors for irrigation, watering gardens, vegetables, roof cooling, agricultural cooling, lawn irrigation, watering potted plants.

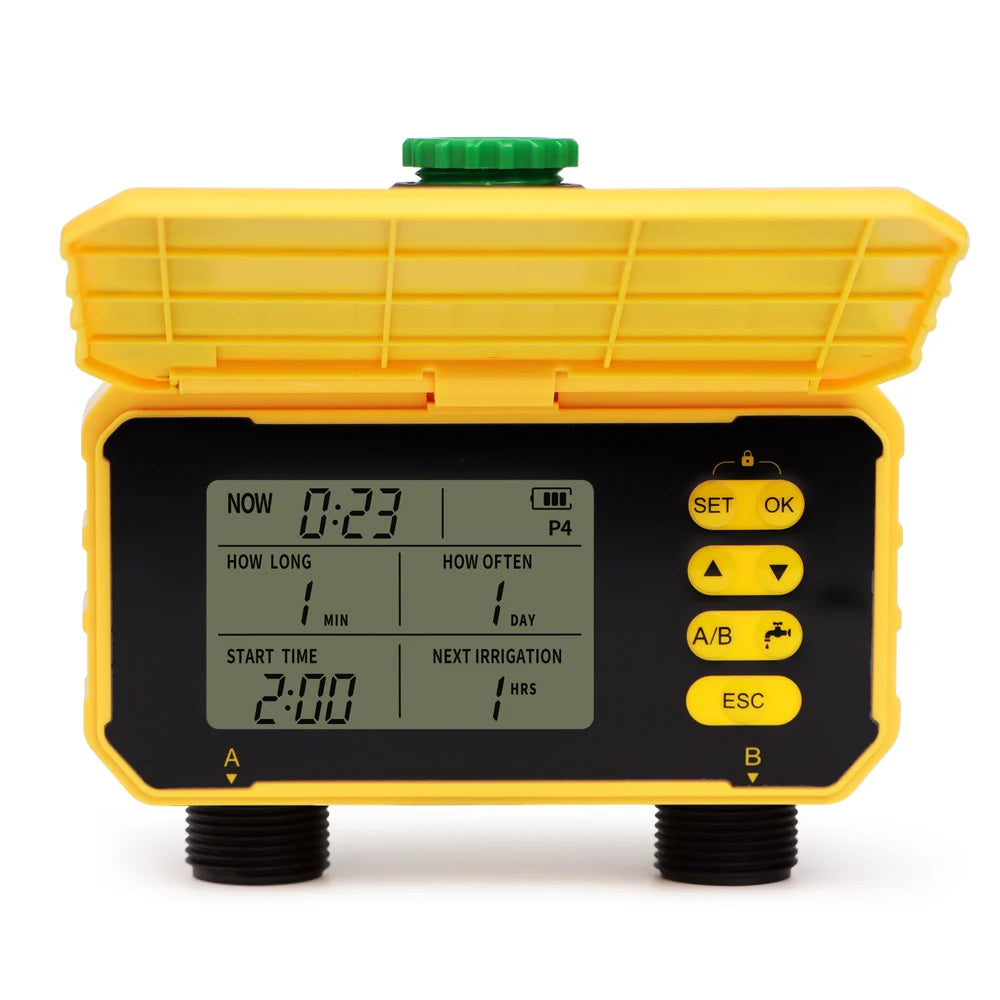

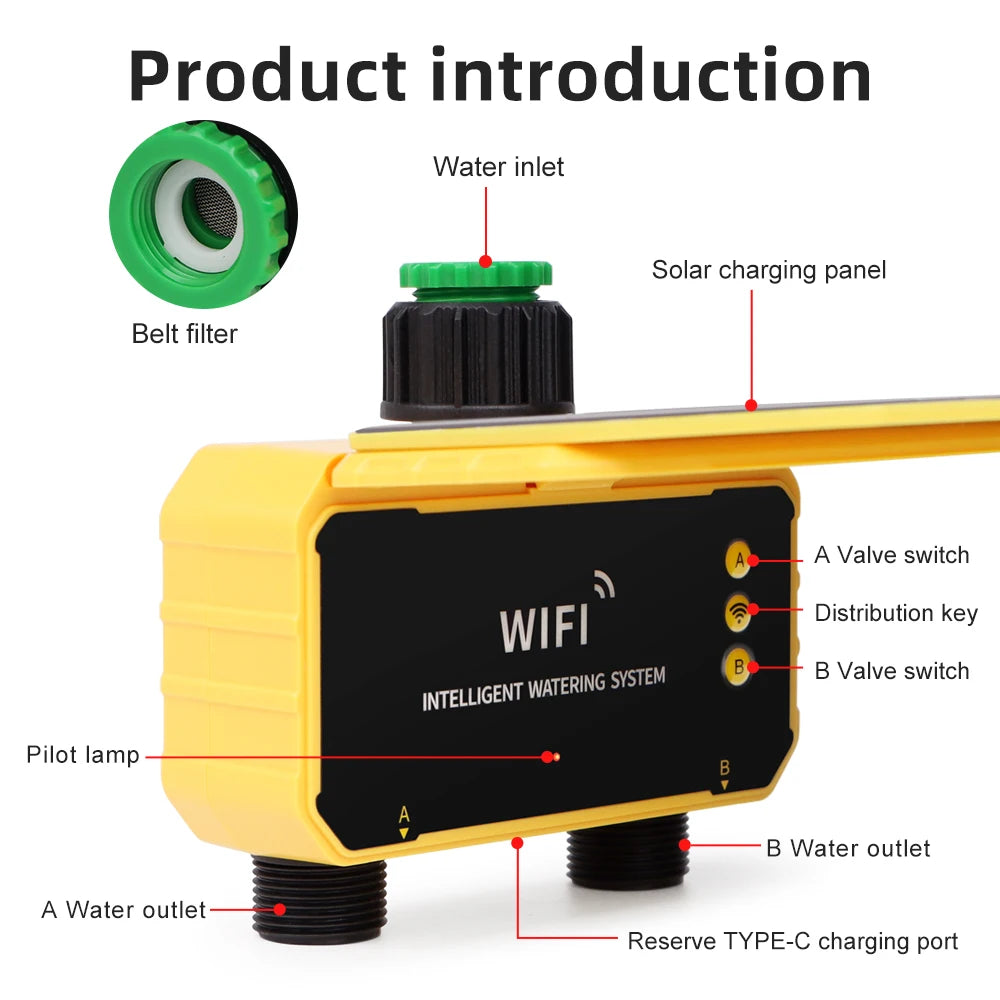

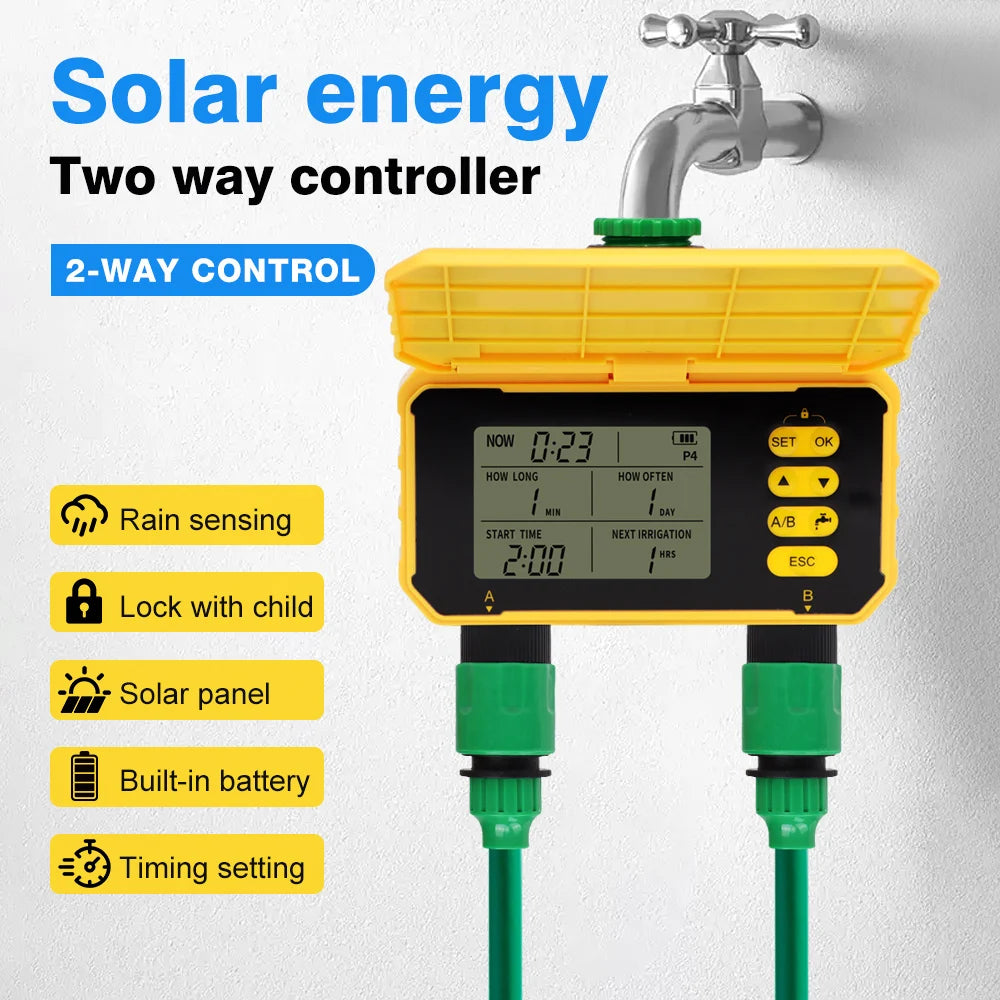

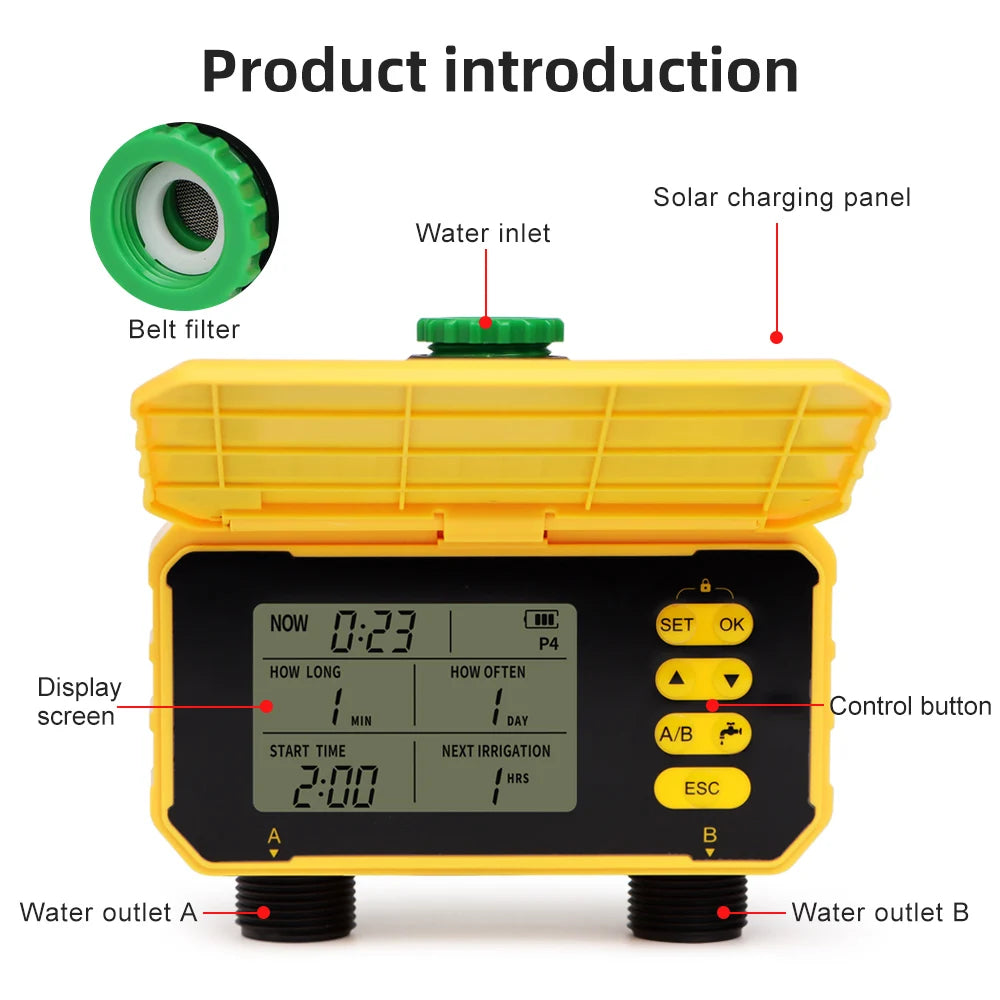

Two-zone irrigation timer

Suitable for water pressure: 0.3-8 bar
Inlet thread: 4/6" thread
Output thread: 4/6" thread
Product size: 140*130*70mm
Product weight: 450g
Suitable for water temperatures: 1°C-60°C
Power supply: solar + built-in 500mAh rechargeable battery
Intelligent timing: 4 groups of timer programs can be freely set

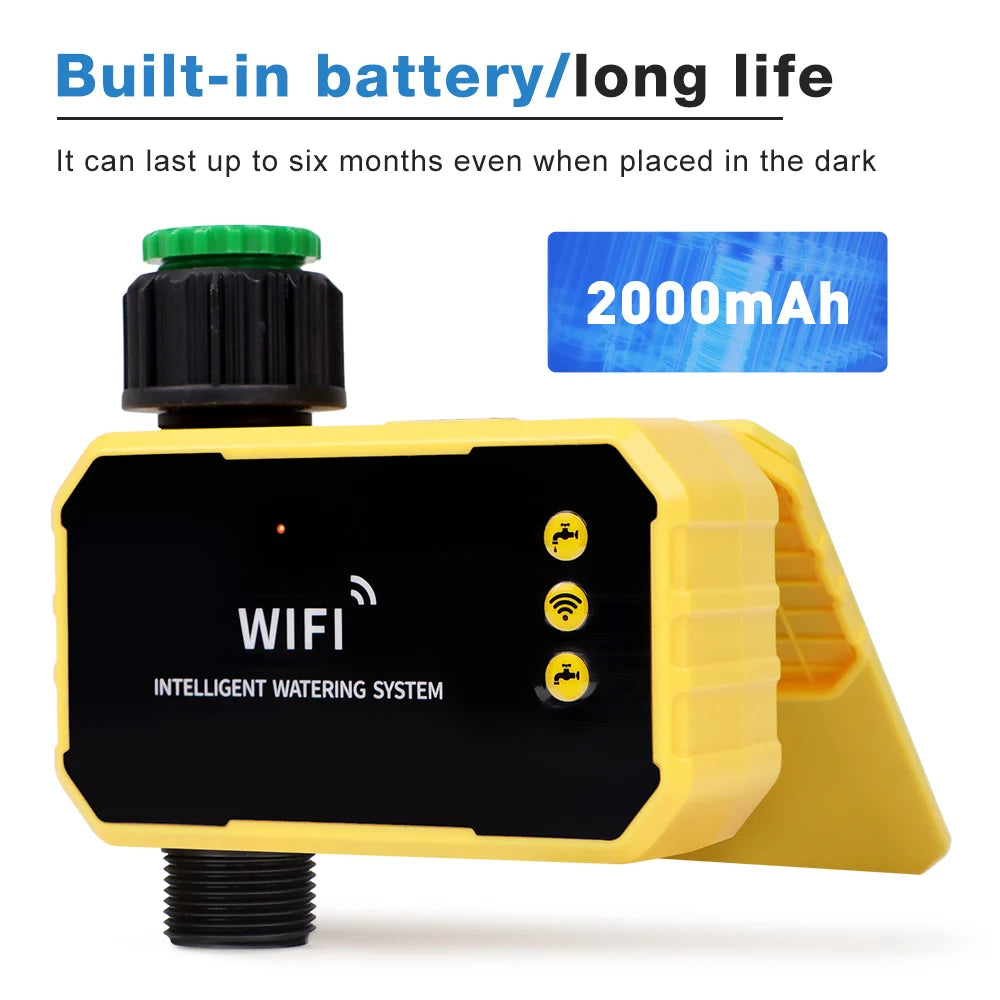

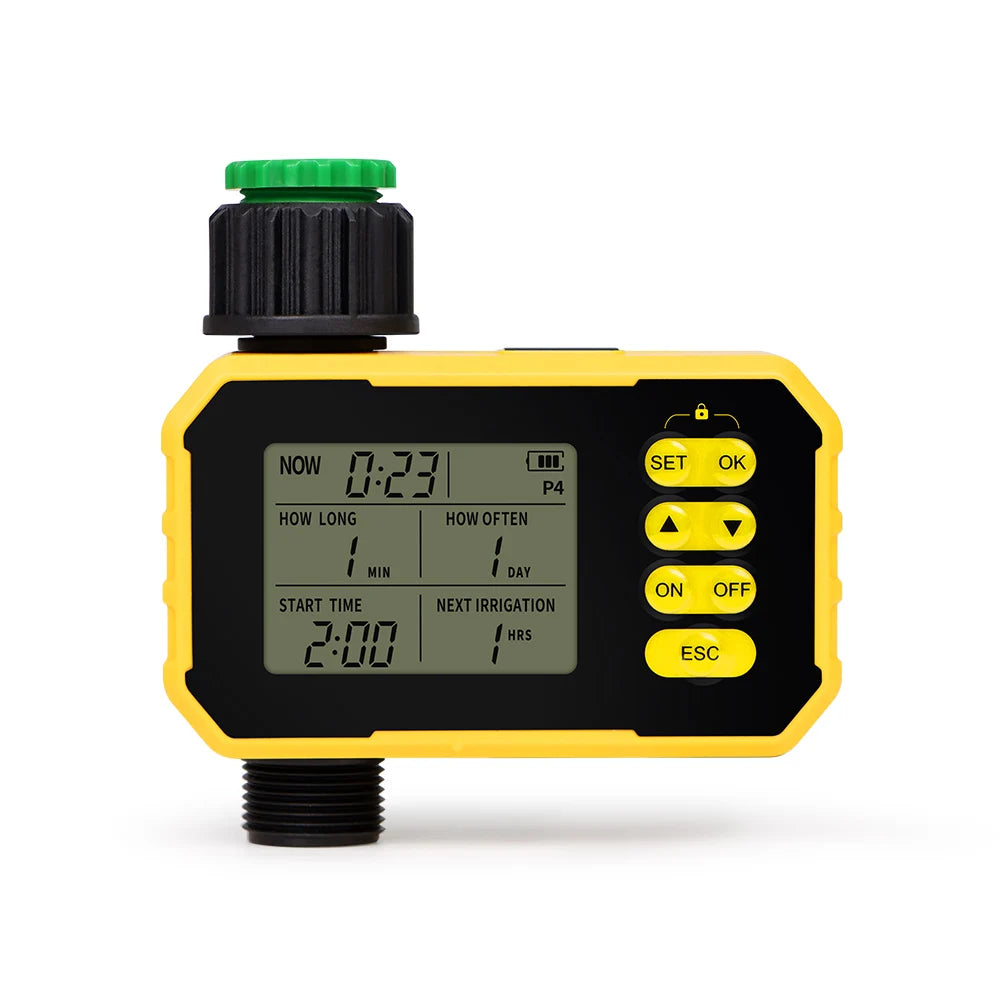

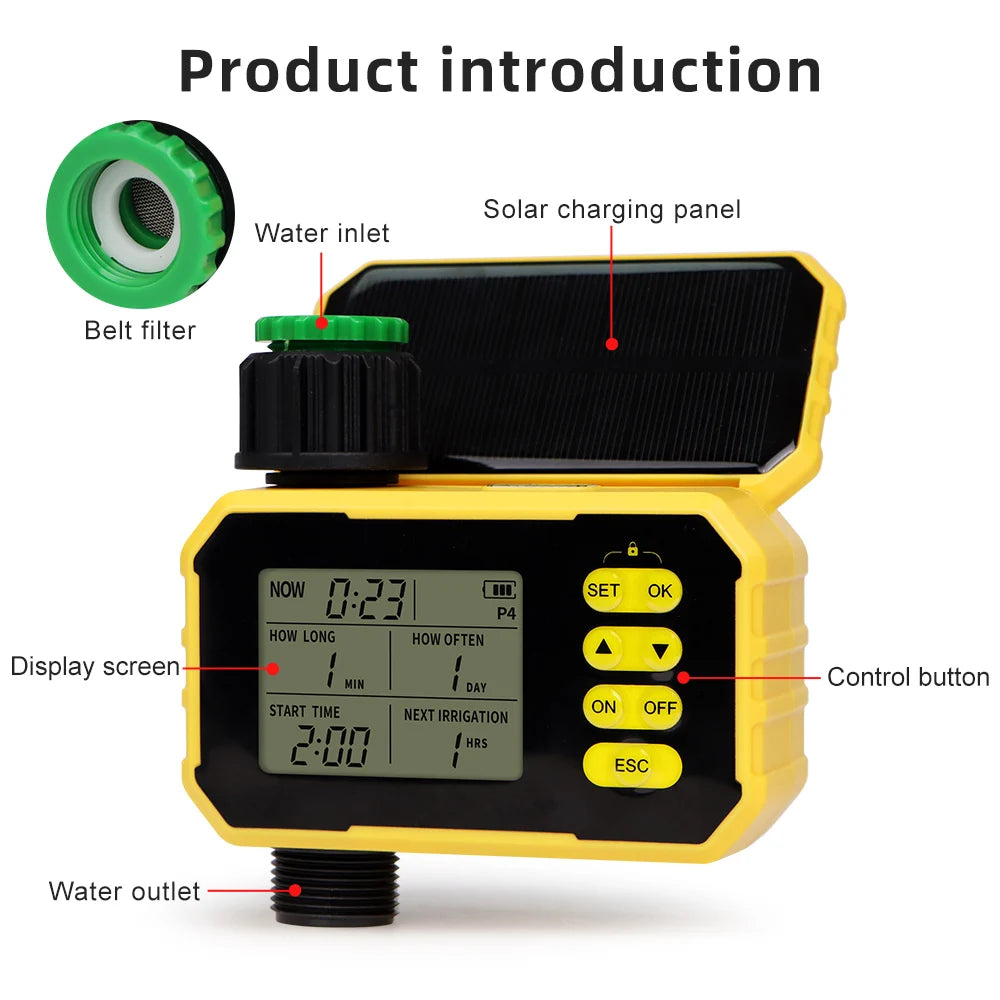

Single-zone irrigation timer

Suitable for water pressure: 0.3-8 bar
Inlet thread: 4/6" thread
Output thread: 4/6''
Product size: 120*120*48mm
Suitable for water temperatures: 1°C-60°C

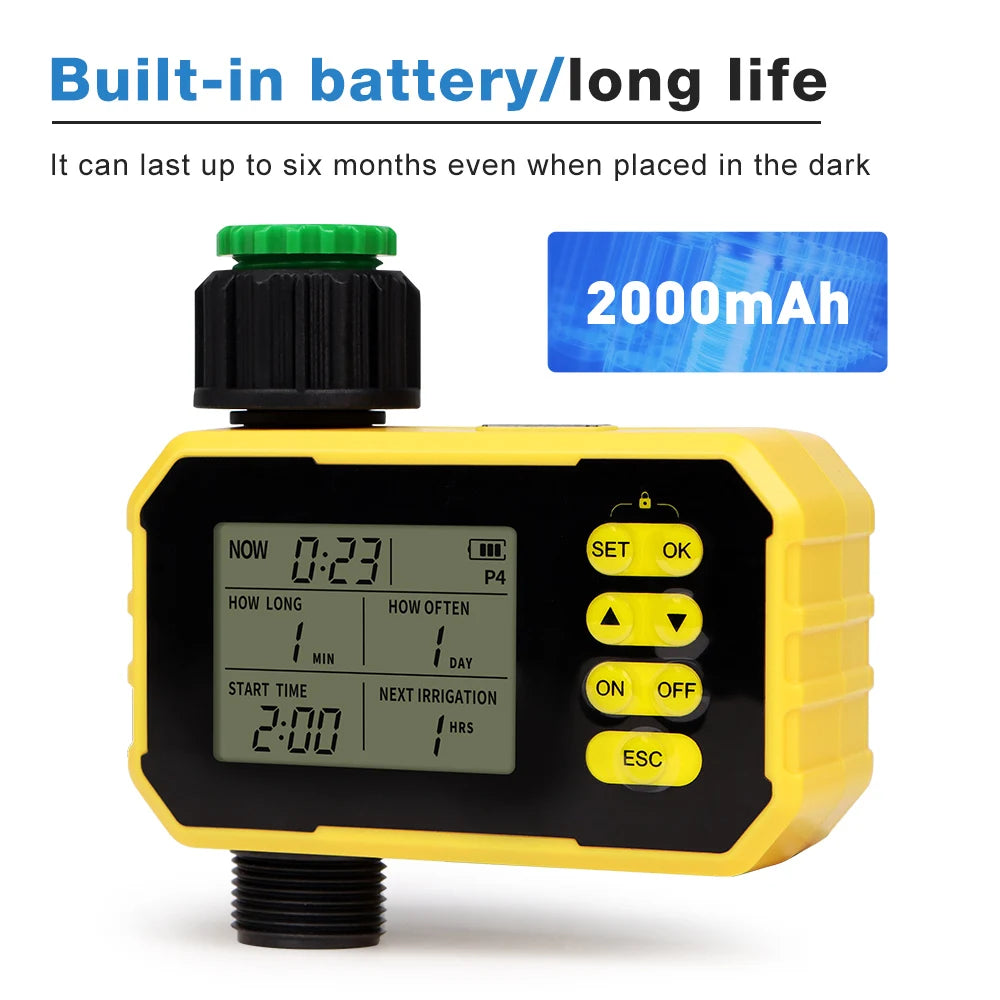

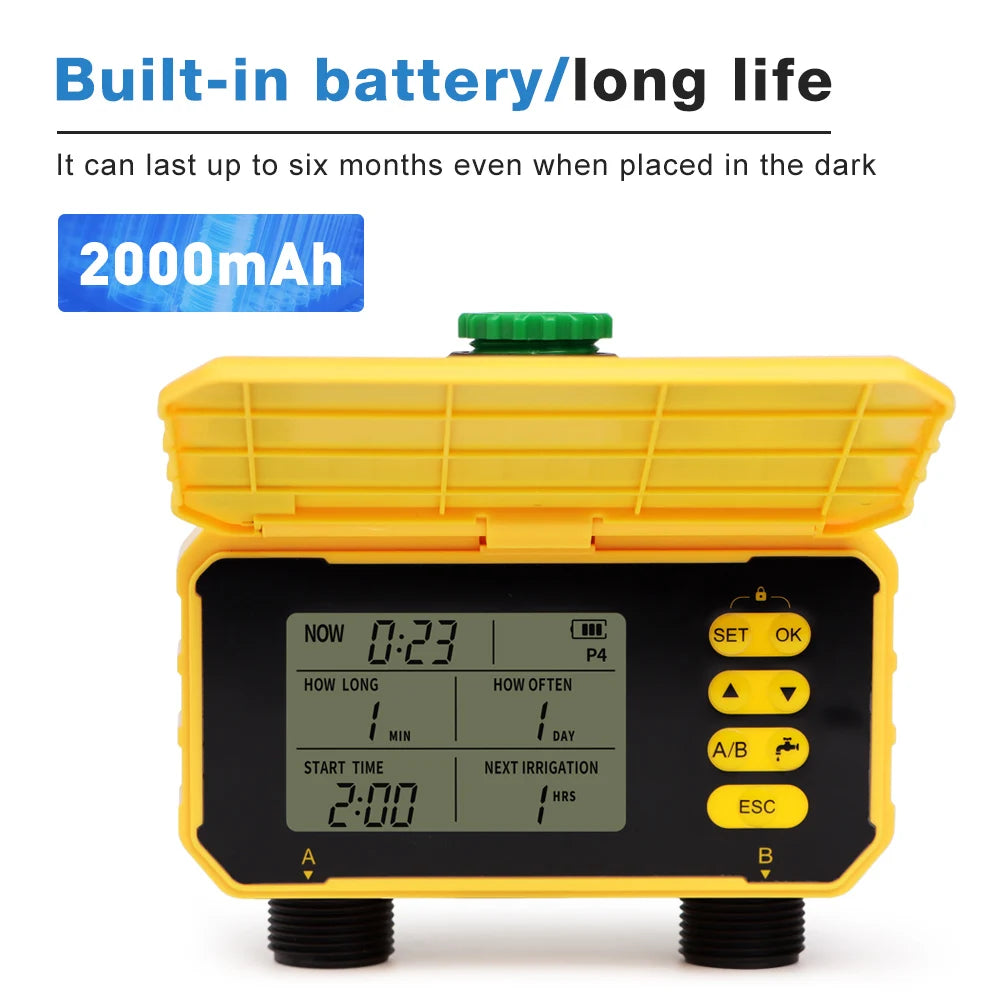

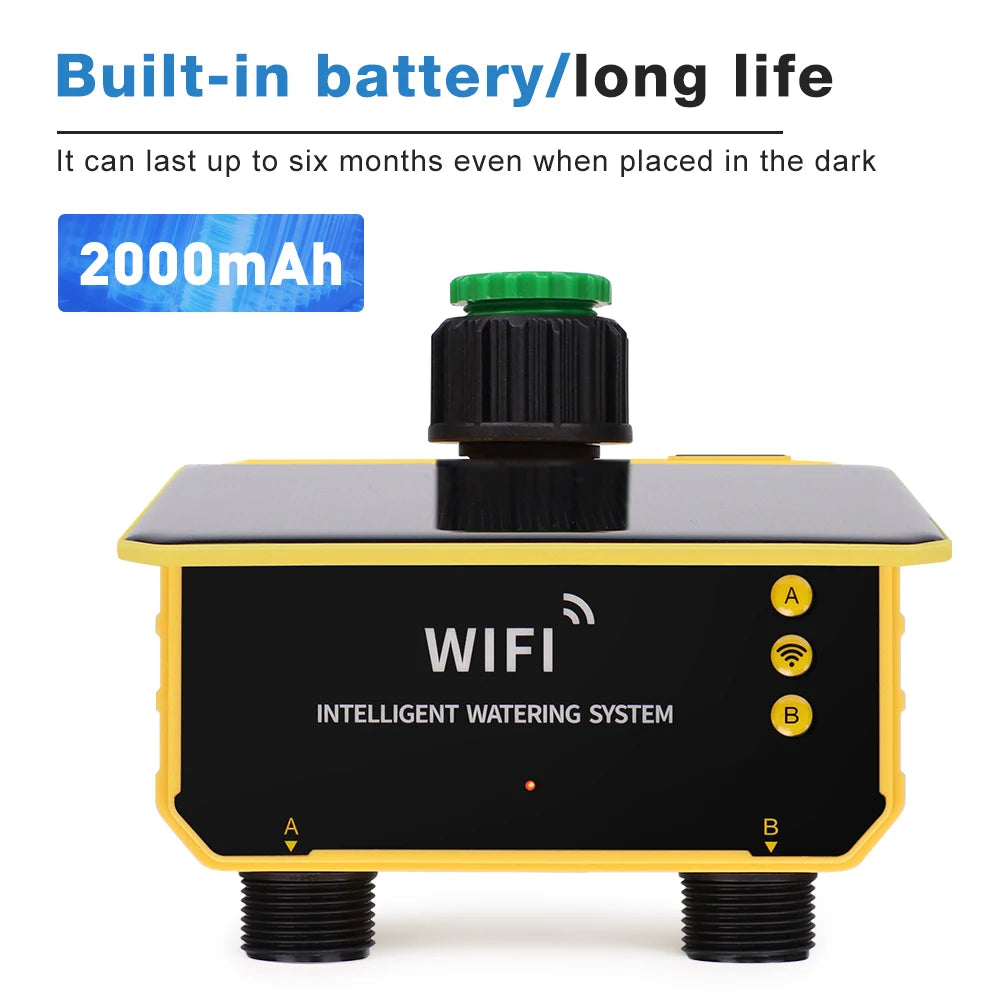

Power supply: solar + built-in 2000mAh rechargeable battery

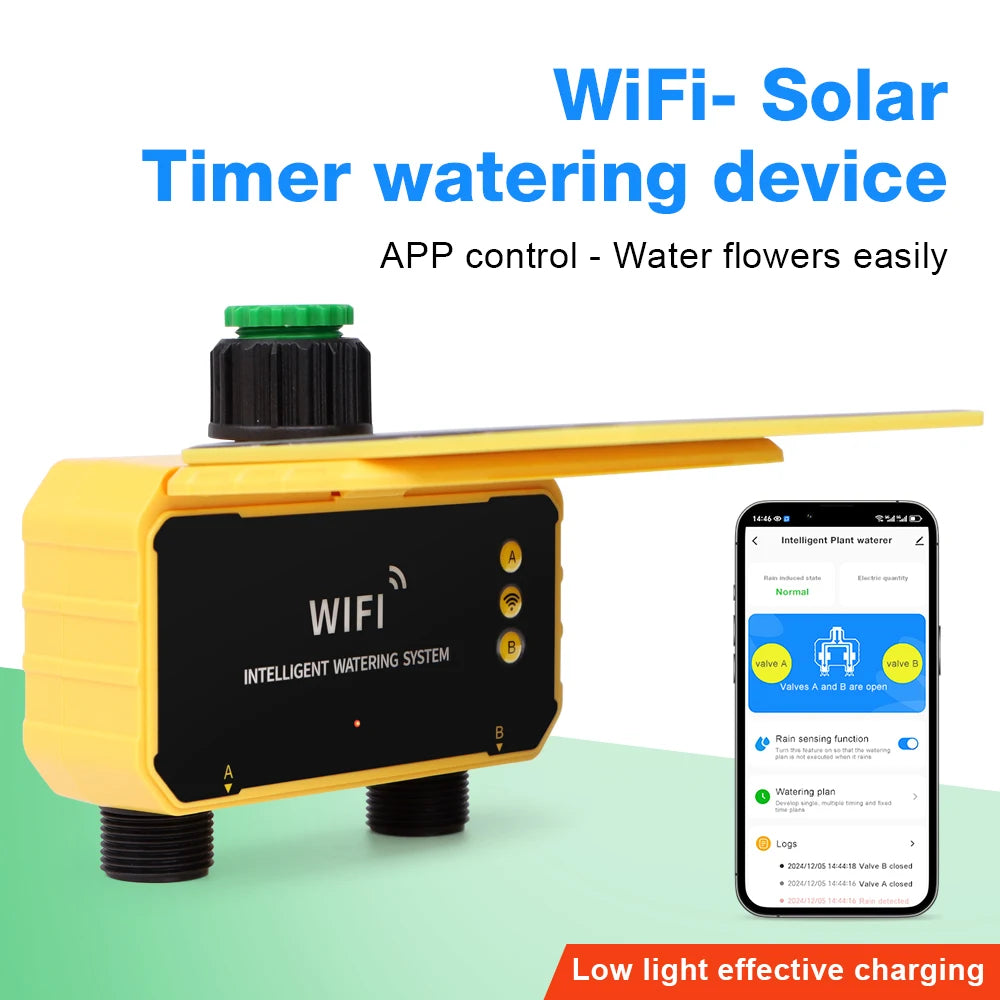

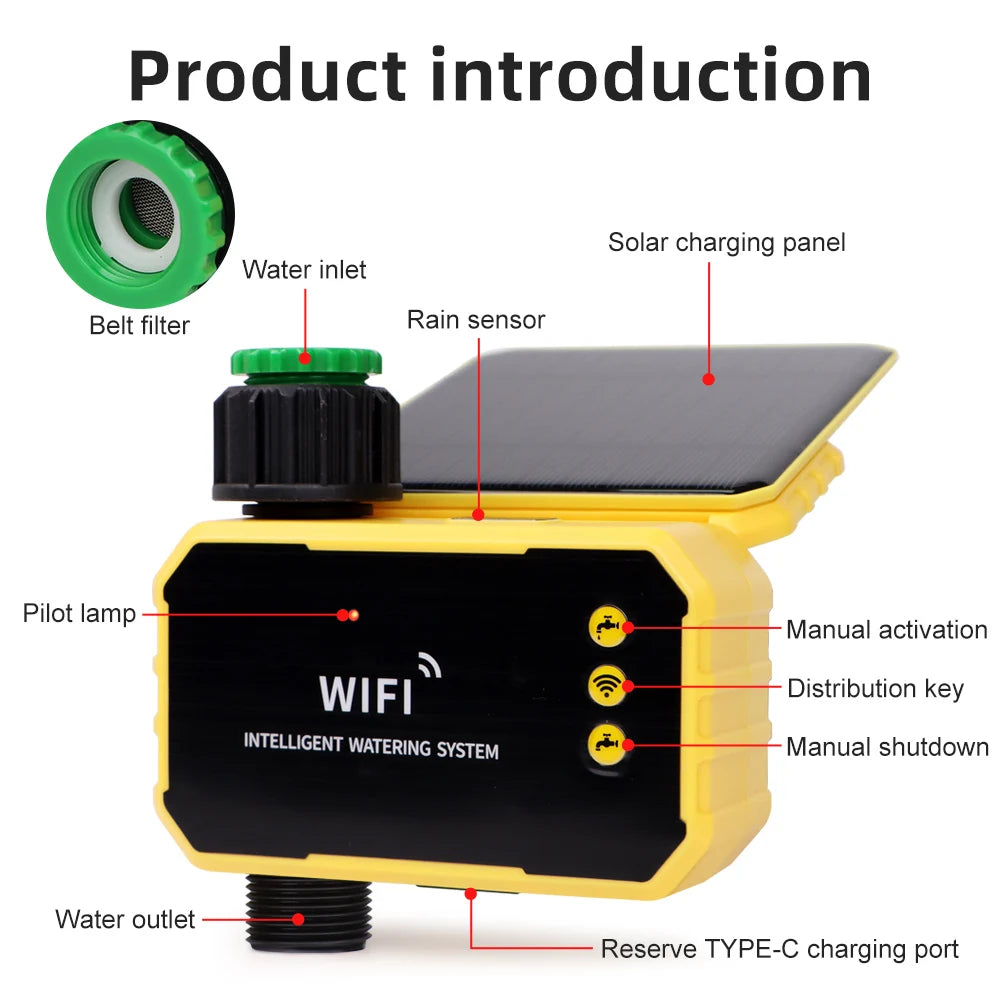

WiFi function models (WiFi models only)

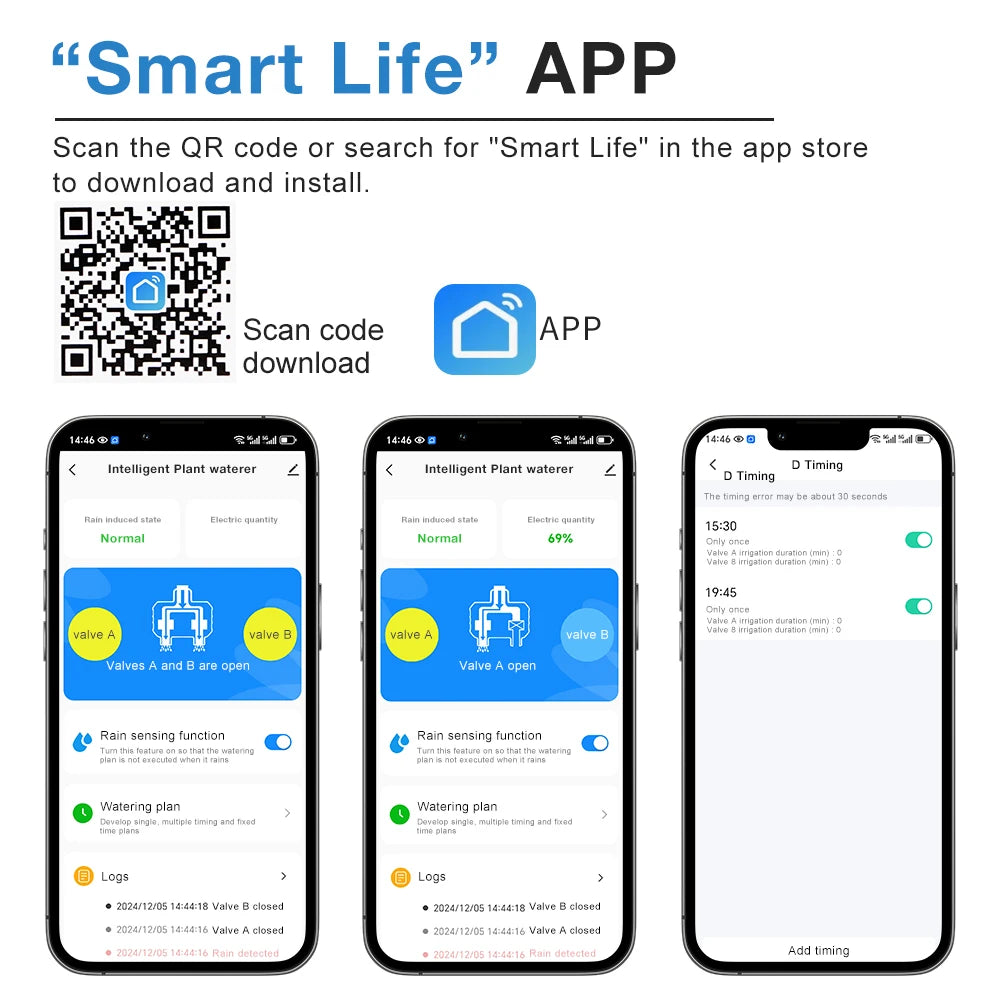

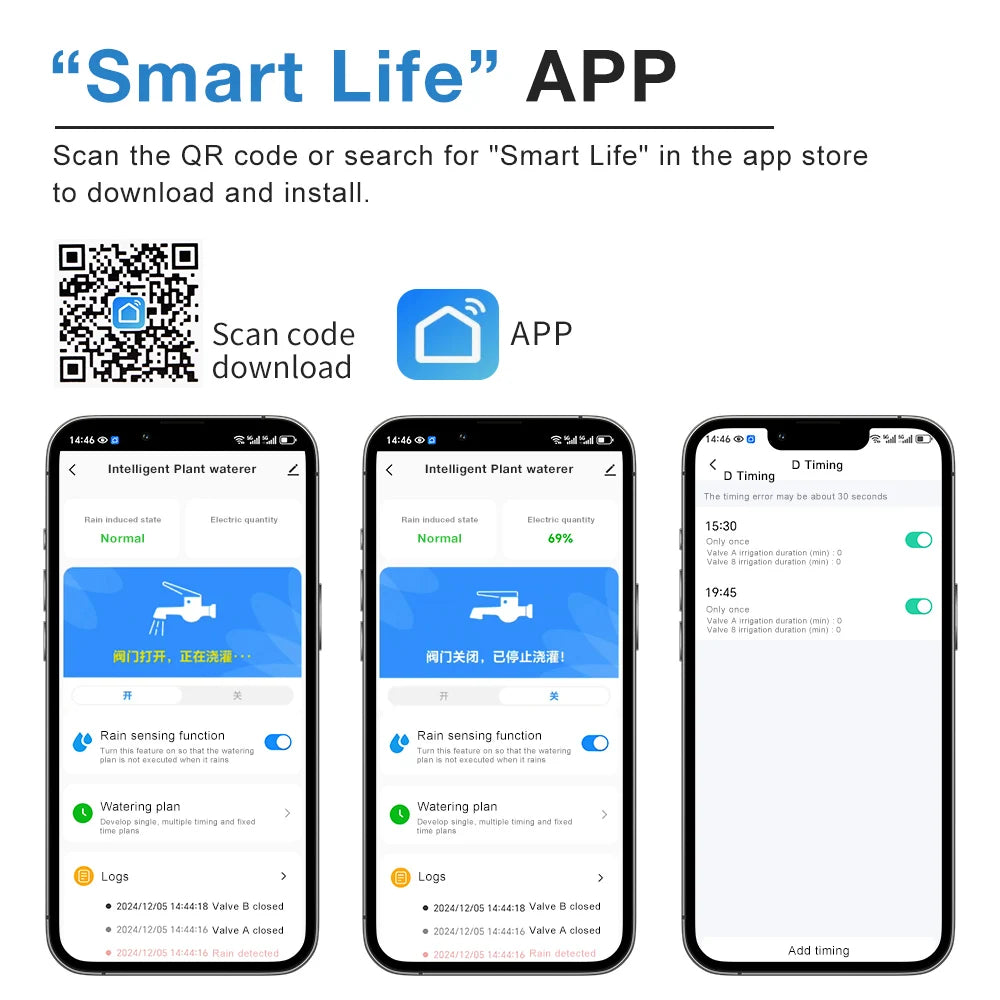

1. Download the "Smart Life" app
Scan the QR code or search for "Smart Life" in the App Store to download and install.

2. Description of the distribution network
(1) Please first fully charge the host, about 4 hours, briefly press this button to wake up the host, the red light will flash and enter distribution mode.
(2) Open the "Smart Life" app and there are three ways to add devices (choose one of the following methods)
① Bluetooth automatically searches for devices and chooses to add devices based on prompts;
② Click on the symbol in the upper right corner, scan the QR code in the following image, add a water valve controller and continue the operation according to the prompts
③ Click the + symbol in the upper right corner to add a device, select the category
[Industry and agriculture] - Water valve controller (Wi-Fi), then follow the instructions to continue the operation;
(3) The red light is flashing and it is currently in the distribution network. Network distribution successful, light off.
Network configuration failed. Try pressing and holding the Wi-Fi button for 5 seconds again to reconfigure the network.

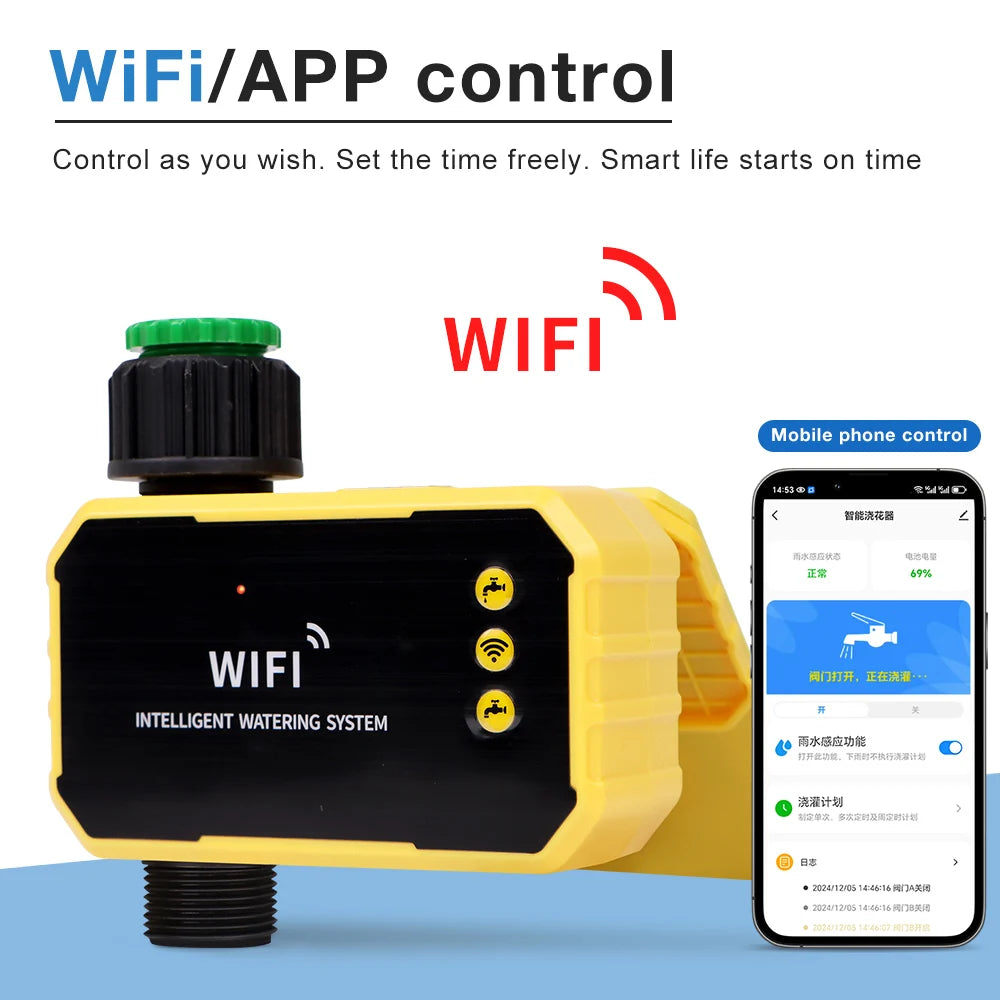

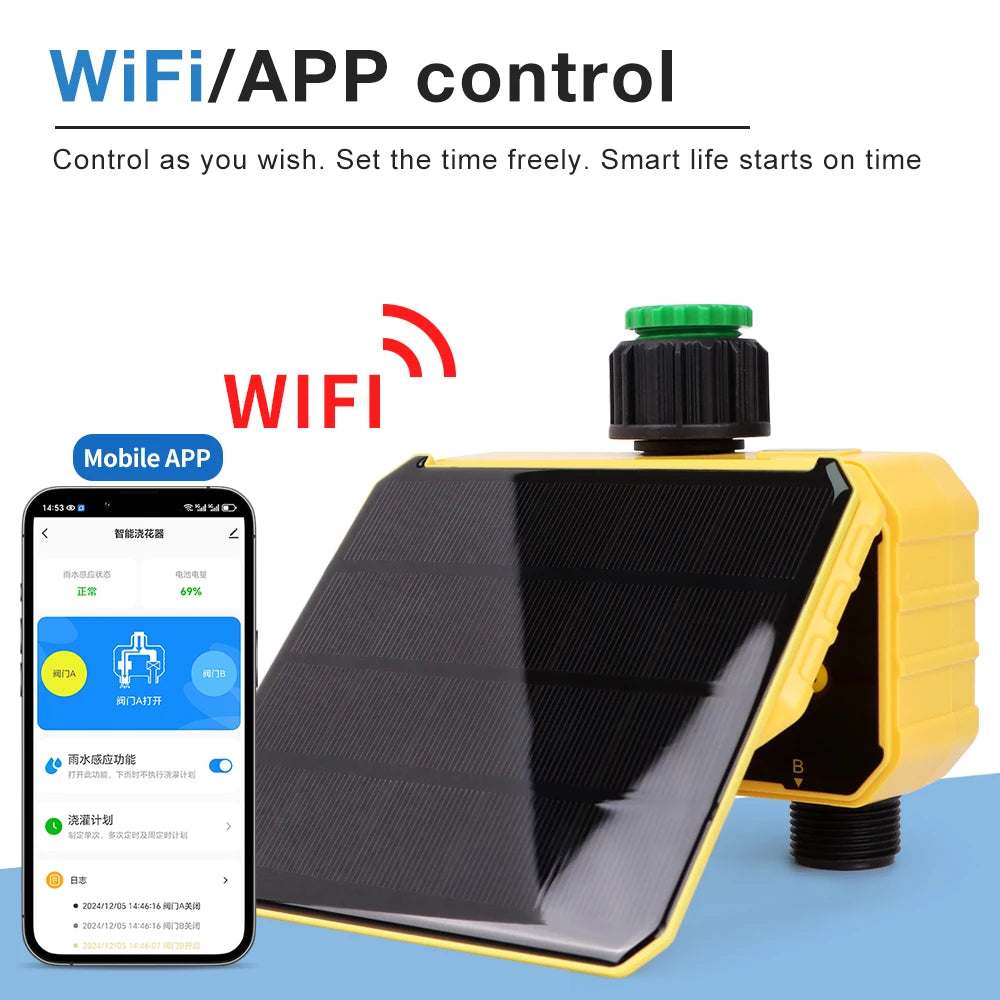

3. Description of the APP function
-- Control the opening/closing of the water valves
-Set the timed automatic watering
-- Low battery warning
-- Changing the equipment name and managing the location
-- Unique open/closed synchronization setting
-- Notification of successful operation execution
