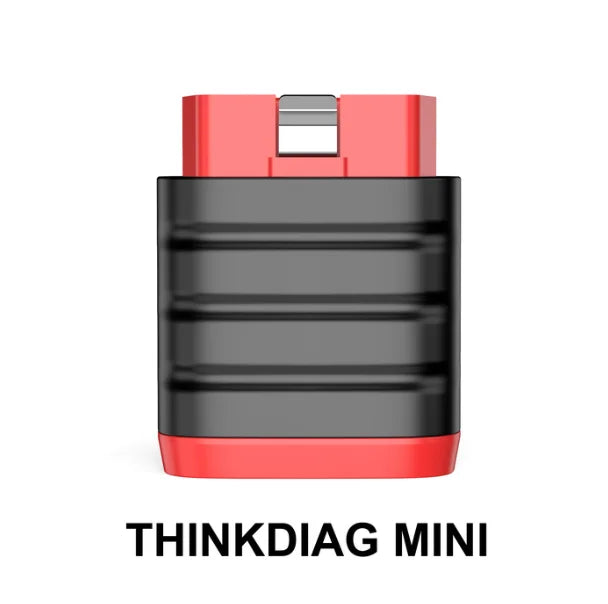

The new Thinkdiag Mini brings you a new diagnostic experience

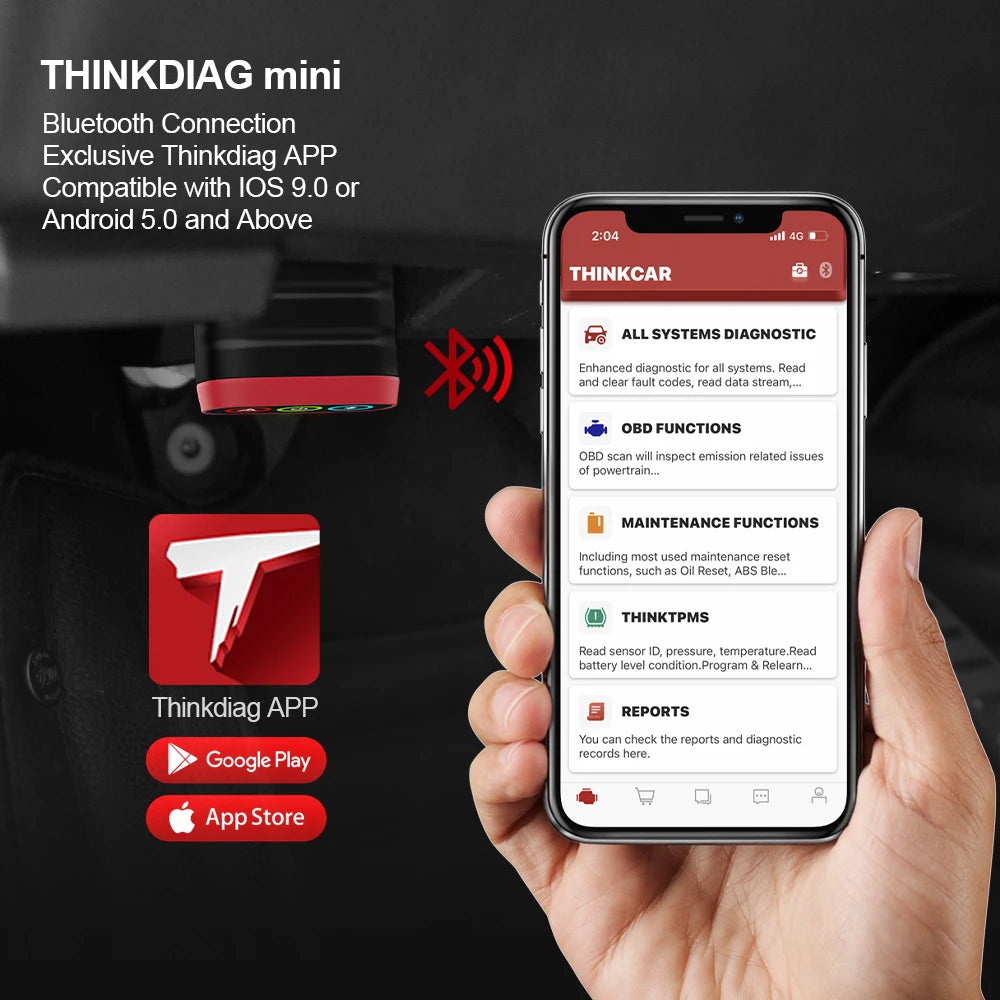

1. Supports Android 5.0 and above and iOS 9.0 and above smartphones, the product is small in size and can be connected to diagnose cars anytime, anywhere.

2. Supports Bluetooth 6.0 connection, efficient and stable connection to mobile phones.

3. Supports over 126 brand car models with free lifetime full system diagnostic updates, covering over 98% of models worldwide, and diagnoses your car's system failure at any time.

4. 10 OBD/EOBD functions are free for life; if your car's engine breaks down, you can resolve minor car faults at home.

5. Supports 12 languages ​​to meet the operational needs and experience of different people worldwide. (English, French, German, Spanish, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek)

Note: No reset service, free lifetime use. If you need a reset service, contact the seller to recommend another model. Thank you.

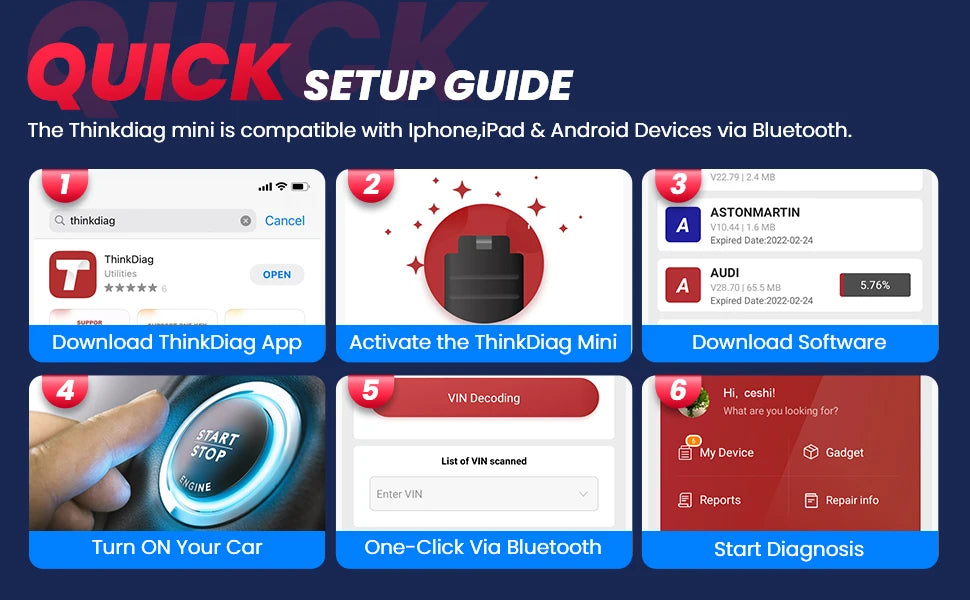

How to use the THINKDIAG mini?

Step 1: Download "ThinkDiag" from the APP store or Google Play Store.
Step 2: Open the THINKDIAD application, click on "Sign up", the verification code will be sent to the email you entered, if you have not received it, please check your spam folder.
Step 3: Click "Activate" to open the activation page. You will need to enter the serial number and an 8-digit activation code located on the first page of the Quick Start Guide.

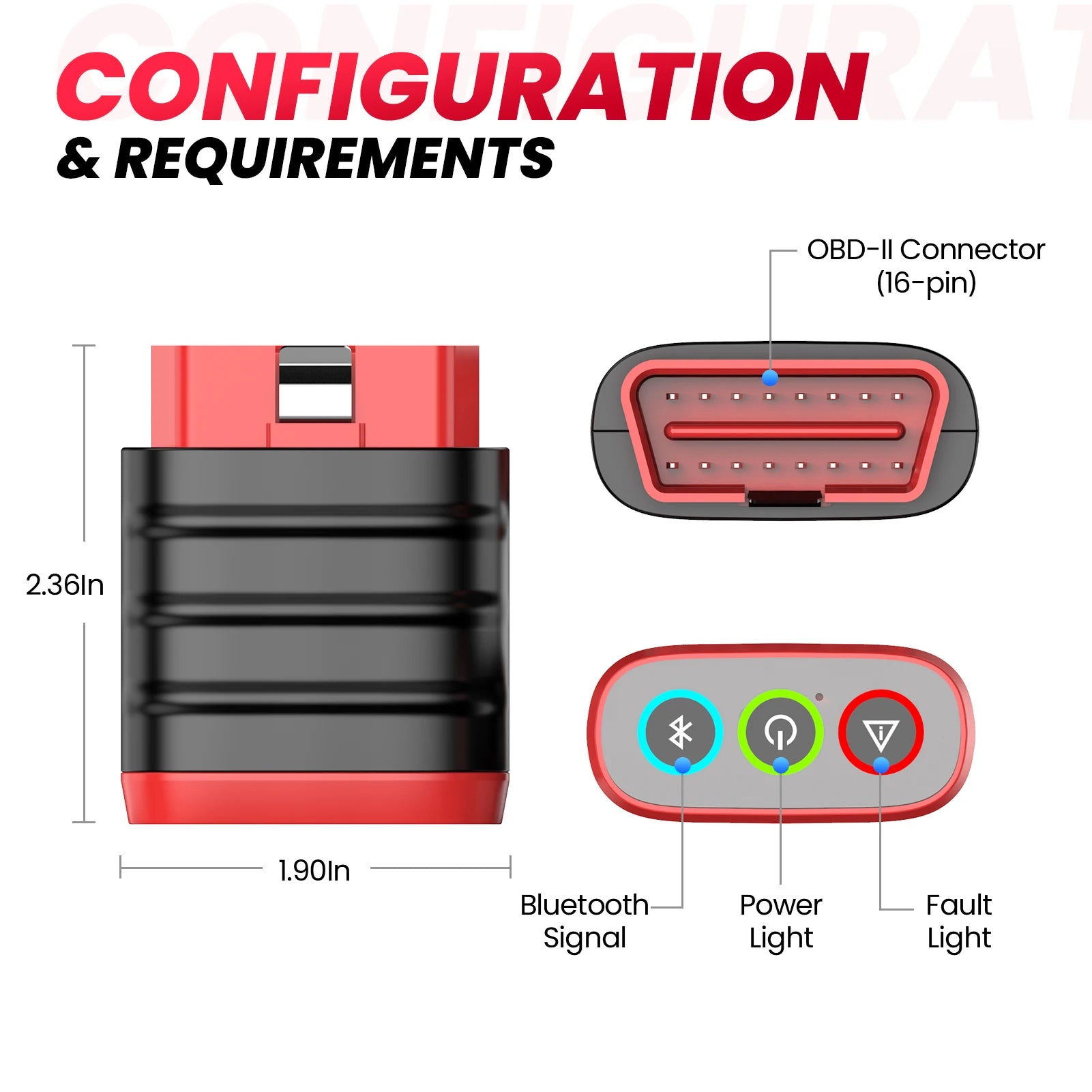

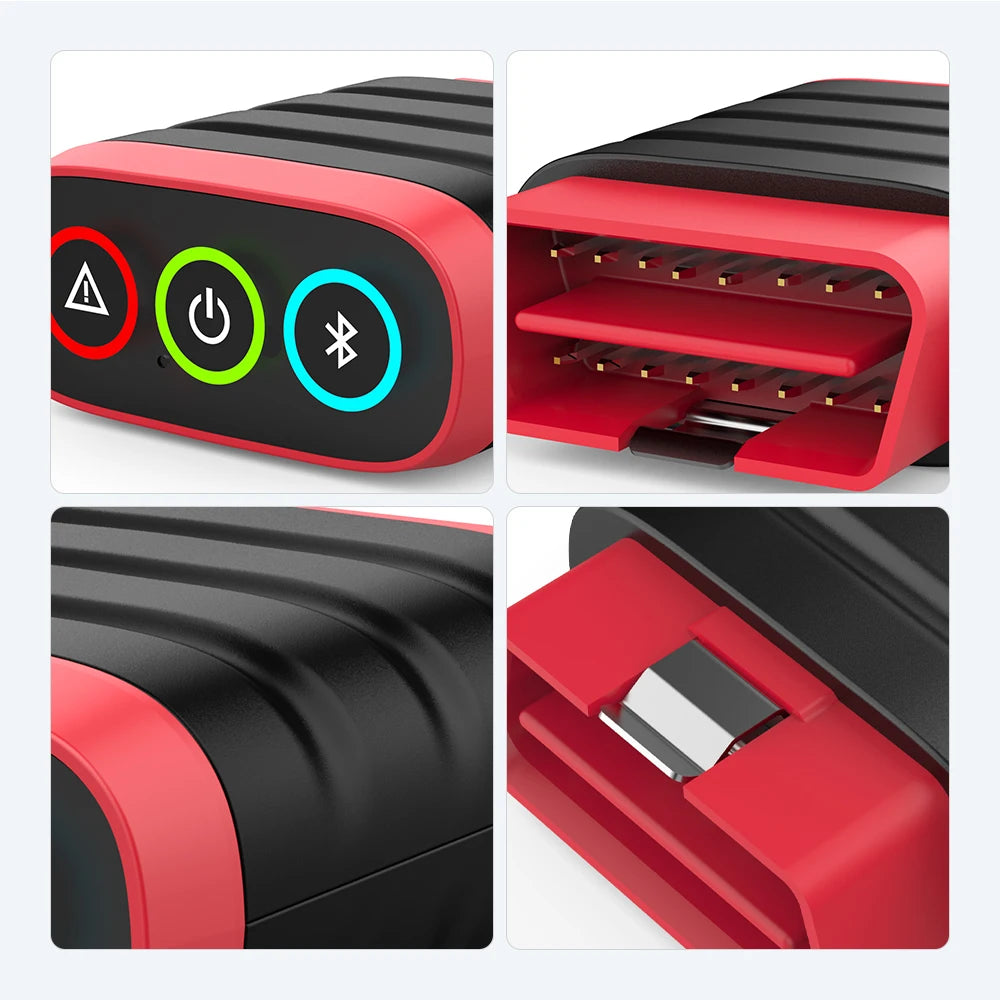

Step 4: Plug THINKDIAG mini into the vehicle's OBDII port; a red light will illuminate, indicating that the device is powered on.
Step 5: Open the THINKDIAG app; it will automatically search for activated devices, select your device, and connect to it via Bluetooth within the app. The indicator will turn flashing blue.
Step 6: In the "Diagnostics" interface of the application, you will need to download the corresponding diagnostic software from the "All System Diagnostic" and "OBD Functions" application.

All cars. Complete system diagnostics. Free lifetime updates.

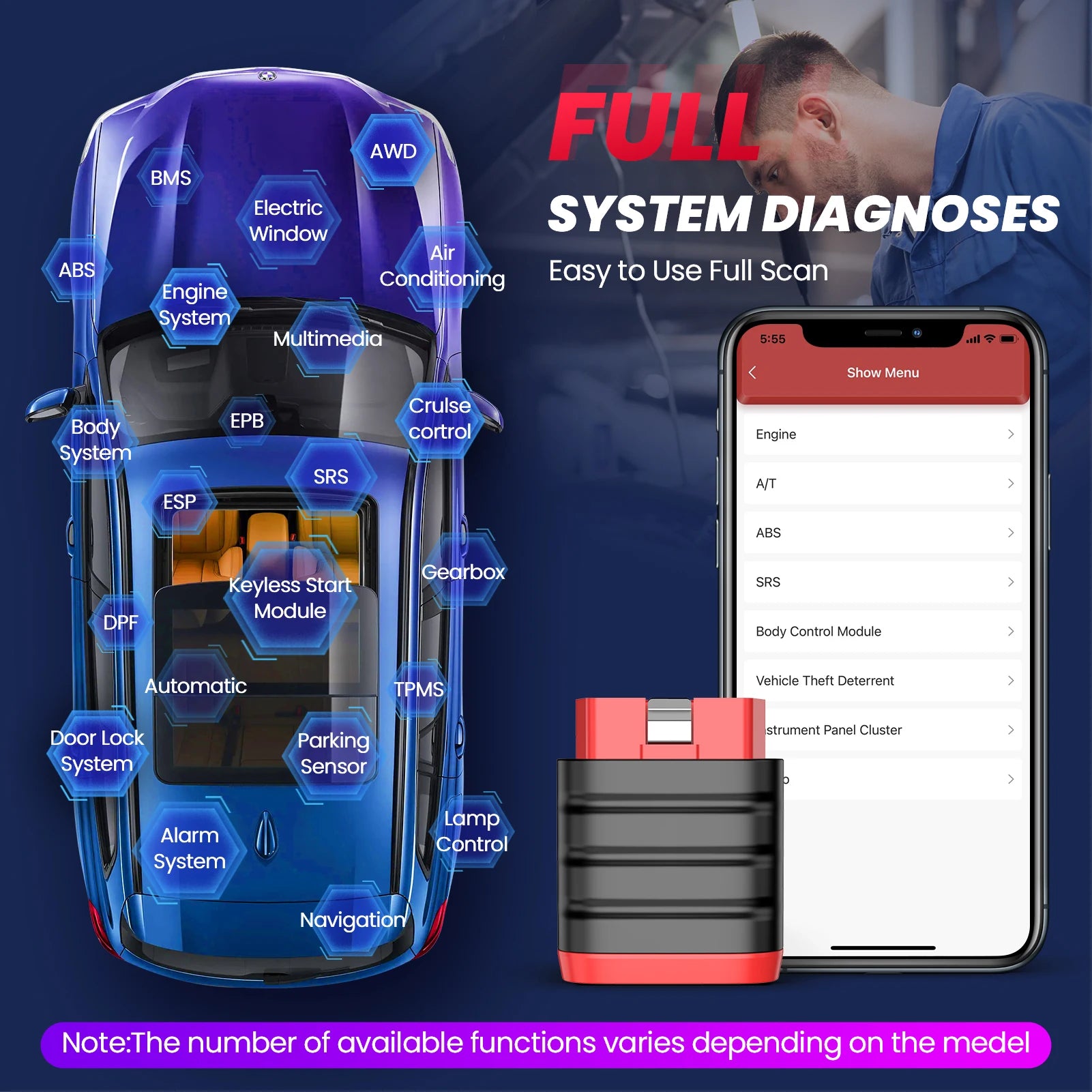

This mini Bluetooth OBD2 scanner from THINKDIAG has comprehensive vehicle system diagnostic functions:

The Diagnostics application allows a data link to the electronic control system of the test vehicle for vehicle diagnostics. The application performs functional tests, retrieves vehicle diagnostic information such as fault and event codes, and live data for various vehicle control systems, such as ABS, SRS, engine, transmission, braking system, emissions system, fuel system, lighting system, windshield wiper system, etc.


Note: Not all diagnostic systems work for all cars. For example, if your car cannot diagnose the airbag system, it means the system is not compatible with your car; there is no quality issue. Thank you for your understanding.

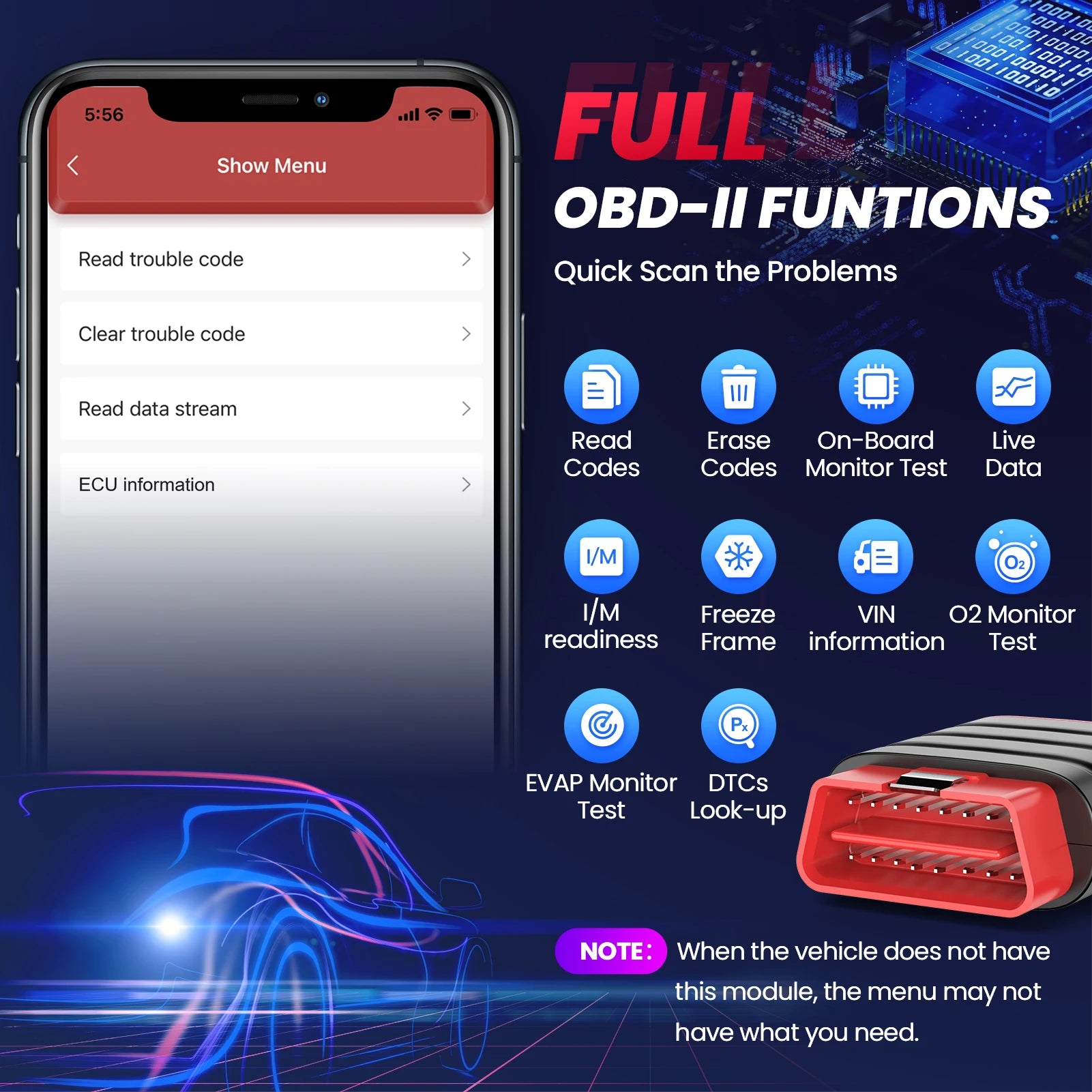

Full OBD2 functions for all cars

*Quickly read many current, pending, and permanent codes in the OBD system
- Clear detected error codes and turn off the Check Engine light efficiently
*View live graphical data from the vehicle's computer module(s) for easy analysis
*Display the vehicle's operating parameters at the time a DTC is detected
*Read the I/M readiness status to have a vehicle inspected for state emissions compliance
* - Perform an O2 sensor test to verify the vehicle's energy efficiency and emissions
*Read the results of embedded diagnostic monitoring tests for specific components/systems
-Retrieve vehicle information from VIN, CINs and CVNs completely
*-Perform component testing by enabling a leak test for the vehicle's EVAP system

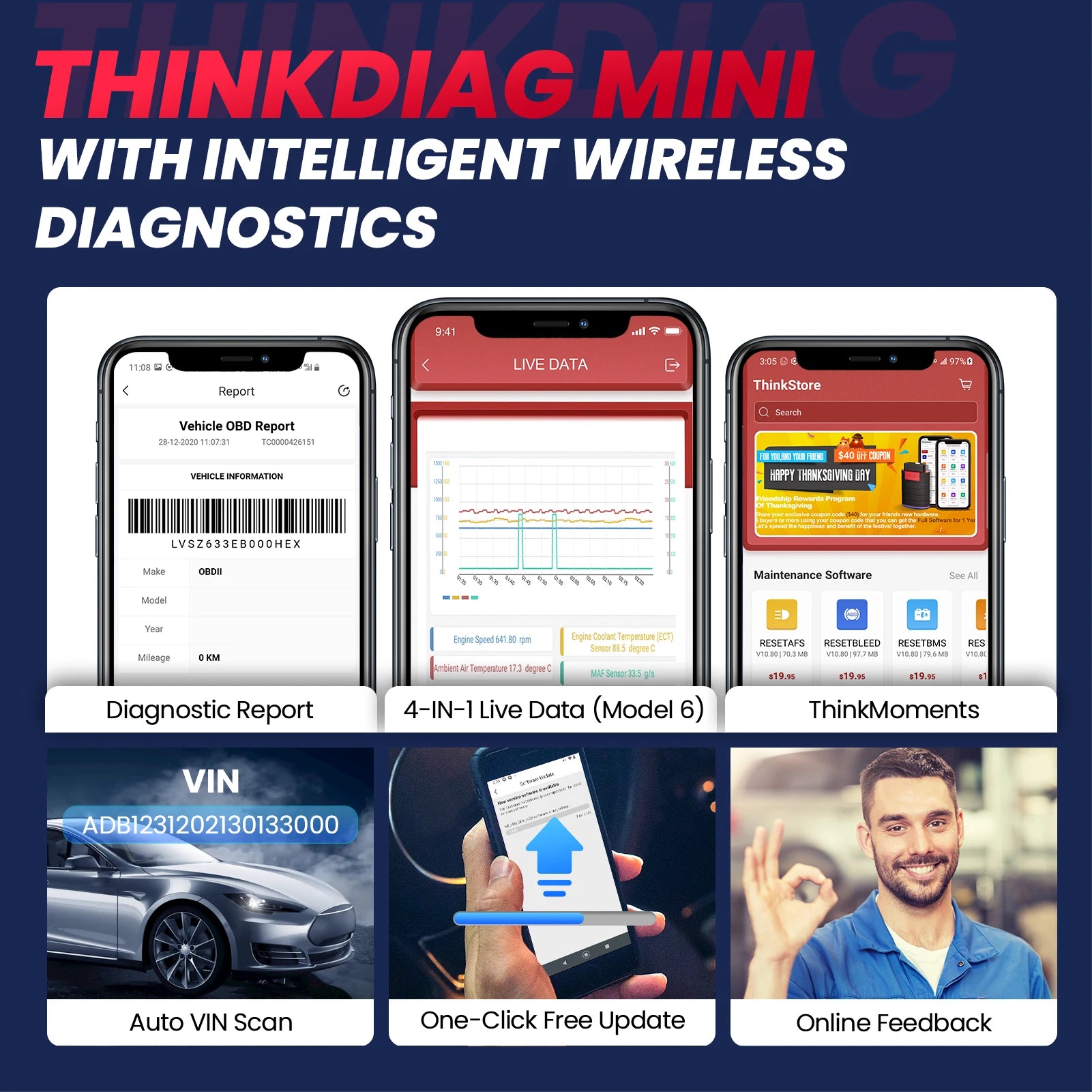

Live data stream

Display real-time PID data from the ECU (analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle's data stream)
The live data produced is accurate and tells you exactly what you need to know about your vehicle.

Compatible with 98% of vehicles, 12 languages

THINKDIAG Mini is compatible with most American, European, and Asian models manufactured from 1996 onward. It supports all OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM, and CAN (Controller Area Network). If you are unsure of your car's OBD2 protocols, check your car's OBD2 connector for a 16-pin connector. If so, this product is compatible with your car. Please note: this product only checks your car's engine.

1. List of American cars:
OBD2 standard required and year of manufacture from 1996 to present
Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect...

2. List of European cars:
OBD2 standard required and year of manufacture from 2000 to present
Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Peugeot, Citroen, Renault, Saab, Volvo, GM, GMSA, Dacia, Seat, ect…

4. List of Japanese/Korean cars:
OBD2 standard required and year of manufacture from 2008 onwards.
Honda, Acura, Toyota, Scion, Lexus, Mazda, Nissan, Infiniti, Isuzu, Daihatsu, Suzuki, Mitsubishi, Subaru, Samsung, Daewoo, Hyundai, Kia, etc…

5. List of Chinese cars:
Requires OBD2 standard and release year (2014-present).
Great Wall, Huachen, Geely, DF Honda, Lifan, etc...

Supports 12 languages

English, French, German, Spanish, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek

Packing lists

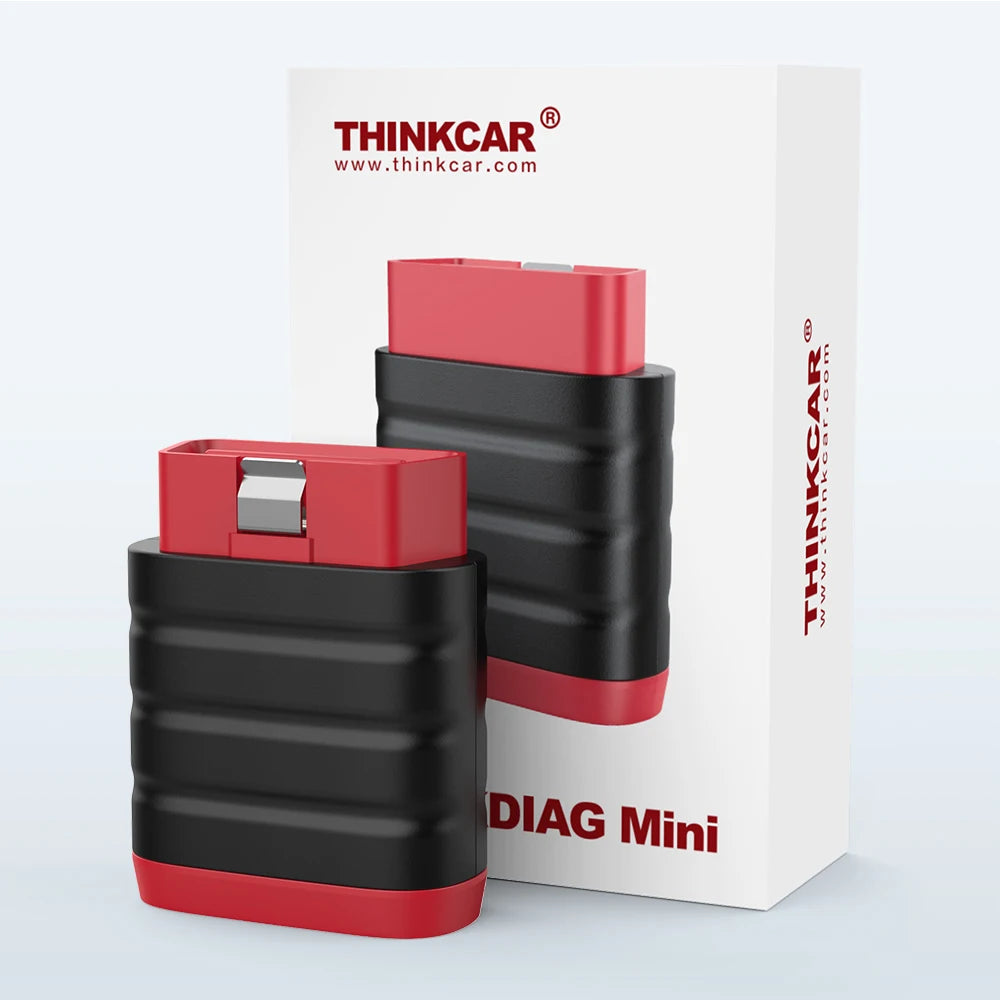

1 * Thinkdiag Mini Scanner
1 * Multilingual user manual
